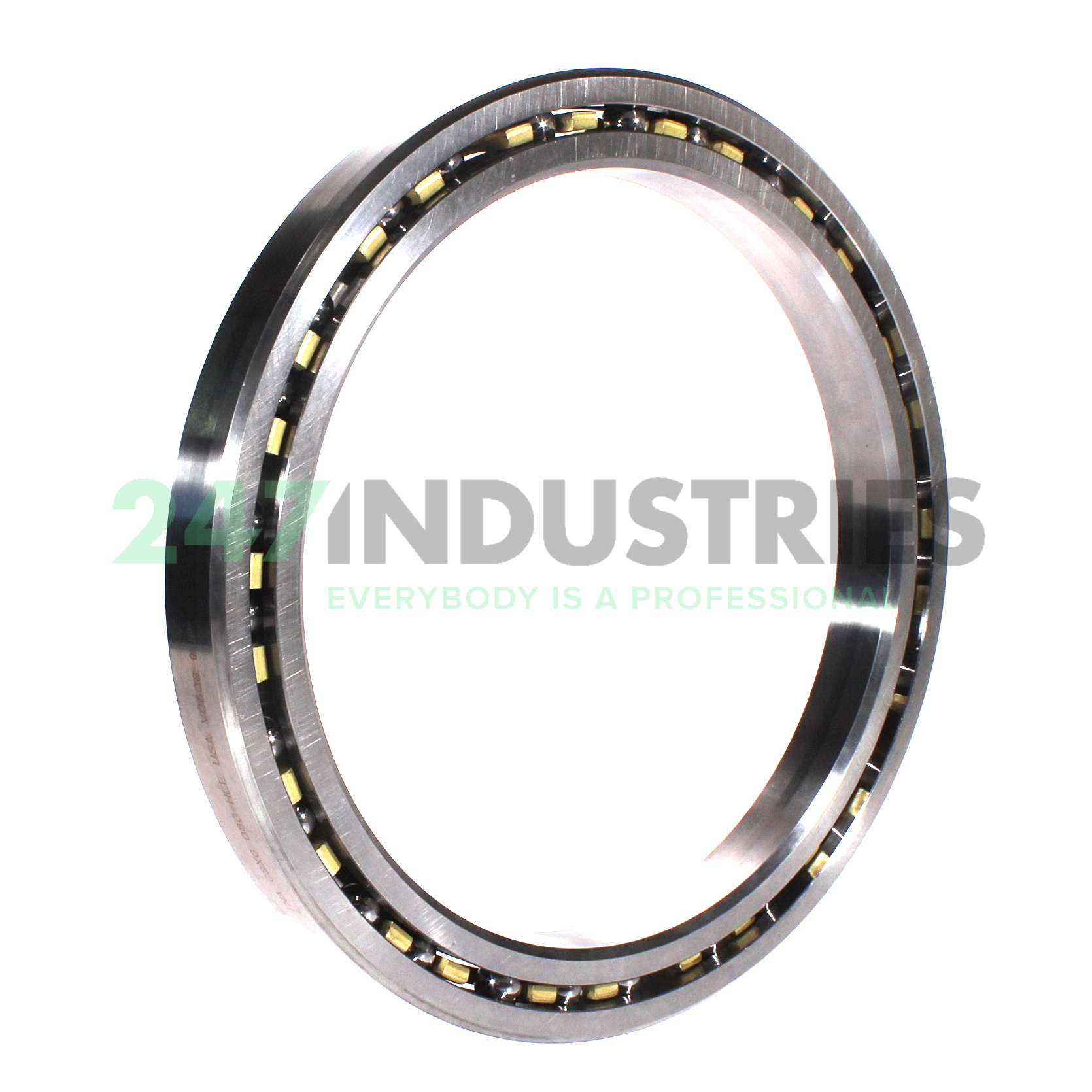

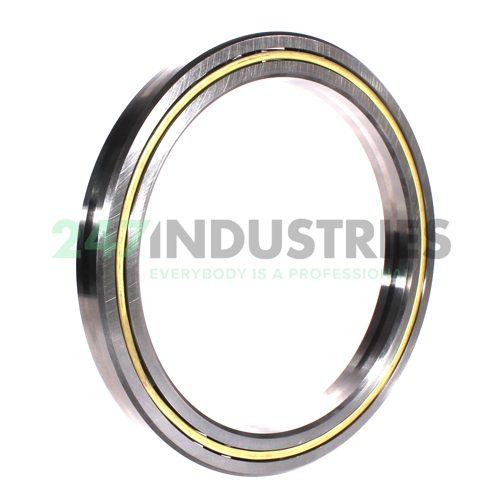

CSXG080-HLE INA

All dimensions

1. Inner (d) MM 203,20
2. Outer (D) MM 254,00
3. Width (B) MM 25,40
4. Inner (d) Inch 8.0000
5. Outer (D) Inch 10.0000
6. Width (B) Inch 1.0000
7. Width (b) mm 25,40

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number CSXG080-HLE INA
4. Also known as 0027326290000
   6000046
   FPXG800
   KG080XP0
   KG080XPO
   L18WA800
   NBX20325

5. EAN 4054362039839
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 2.95

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 100000
2. Radial Dynamic Load Rating Cr (N) 64000
3. Basic static load rating, radial (C 0r) "100000.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSXG, four-point contact bearing
