CSXD100-PL6-HLE INA

Stock
not in stock
Brand INA
Article number CSXD100-PL6-HLE INA
Inside diameter 254mm
Outside diameter 279,4mm
Width 12,7mm
Product description
Help with this product

Downloads and links

Similar to: CSXD100-PL6-HLE INA

Loading similair products

Product specifications

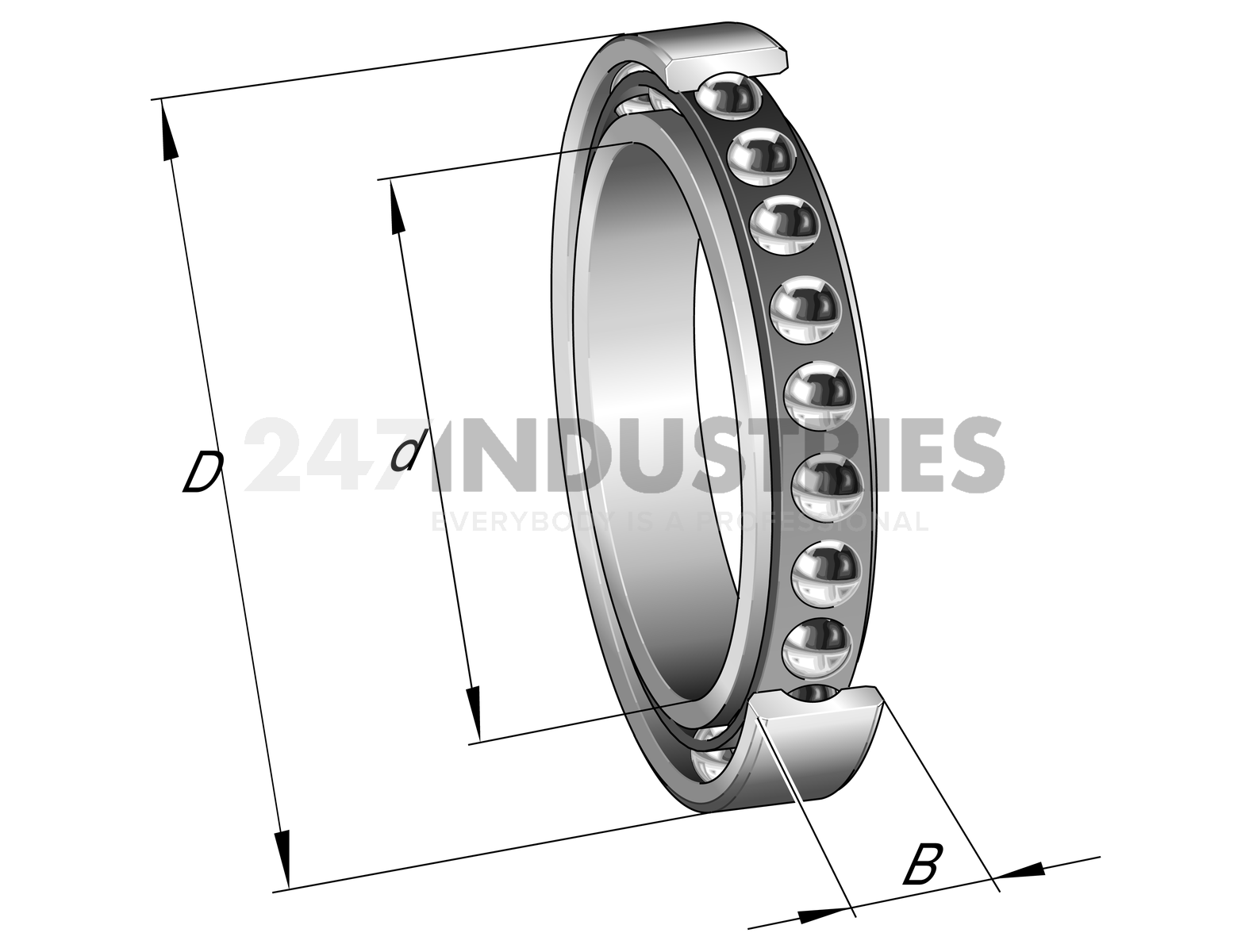

All dimensions

  1. Inner (d) MM 254
  2. Outer (D) MM 279,4
  3. Width (B) MM 12,7
  4. Inner (d) Inch 10
  5. Outer (D) Inch 11
  6. Width (B) Inch 0.5

Suffix description

  1. PL6 Tolerance Class, Thin Section Bearings With Particularly High Dimensional And Running Accuracy (Connected With A Narrow Clearance)
  2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

  1. Availability 0 pcs
  2. Brand INA
  3. Item number CSXD100-PL6-HLE INA
  4. Also known as CSXD100
    FPXD1000
    KD100XPO
    L18TA1000
    NBX25412
  5. Category Four Point Contact Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.85

Product Properties

  1. Seal No Seal
  2. Cage Type M - Brass Cage
  3. External Modification No External Modification
  4. Radial Internal Play Cn Normal Internal Play
  5. Precision P6 Precision (Higher than Standard)
  6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 50000
  2. Radial Dynamic Load Rating Cr (N) 22700
  3. ECLASS number 23-05-08-03
  4. ECLASS2 number 23-05-08-03
  5. Medias description Thin Section Bearing CSXD, four-point contact bearing

Downloads and links

  1. Link to manufacturer Link to manufacturer
