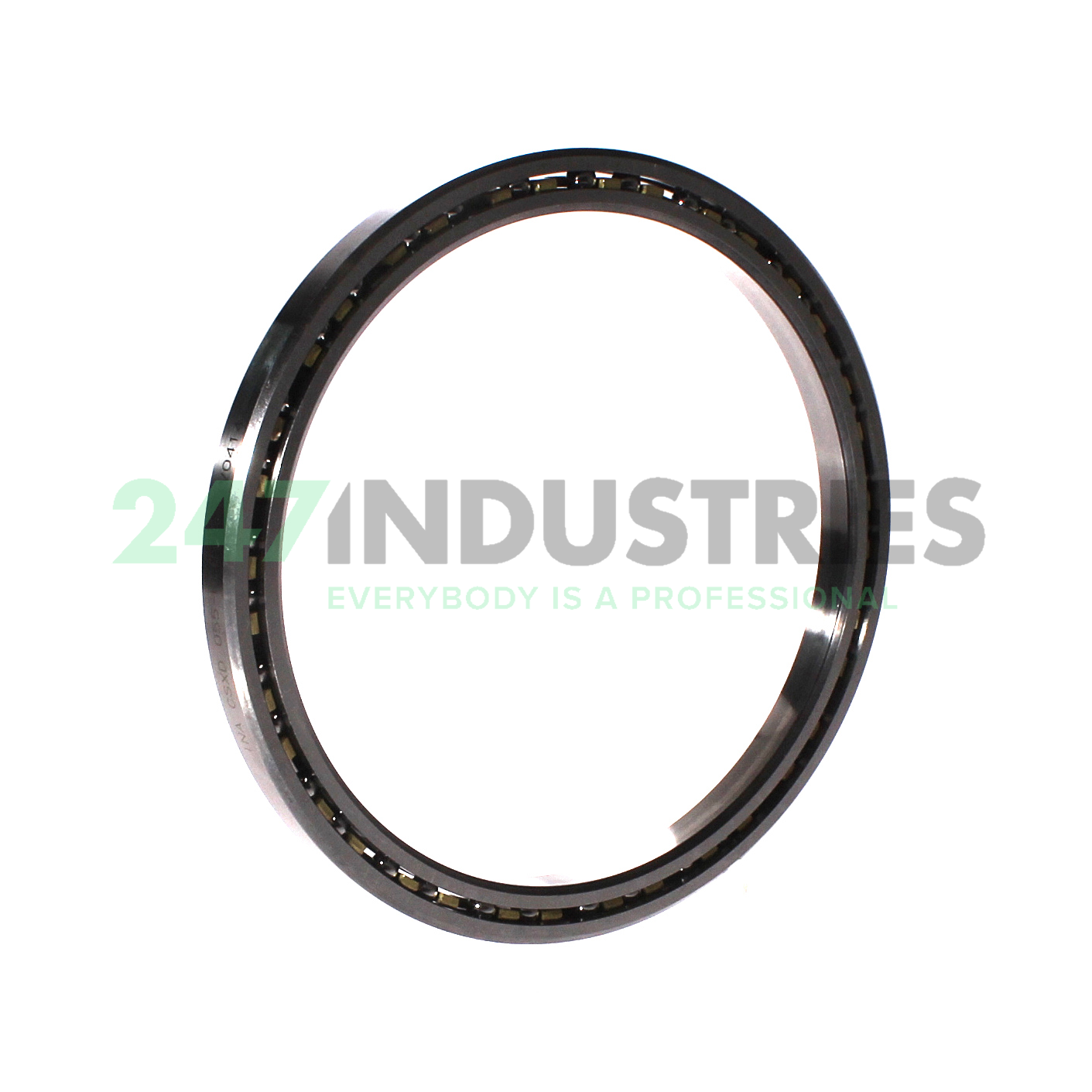

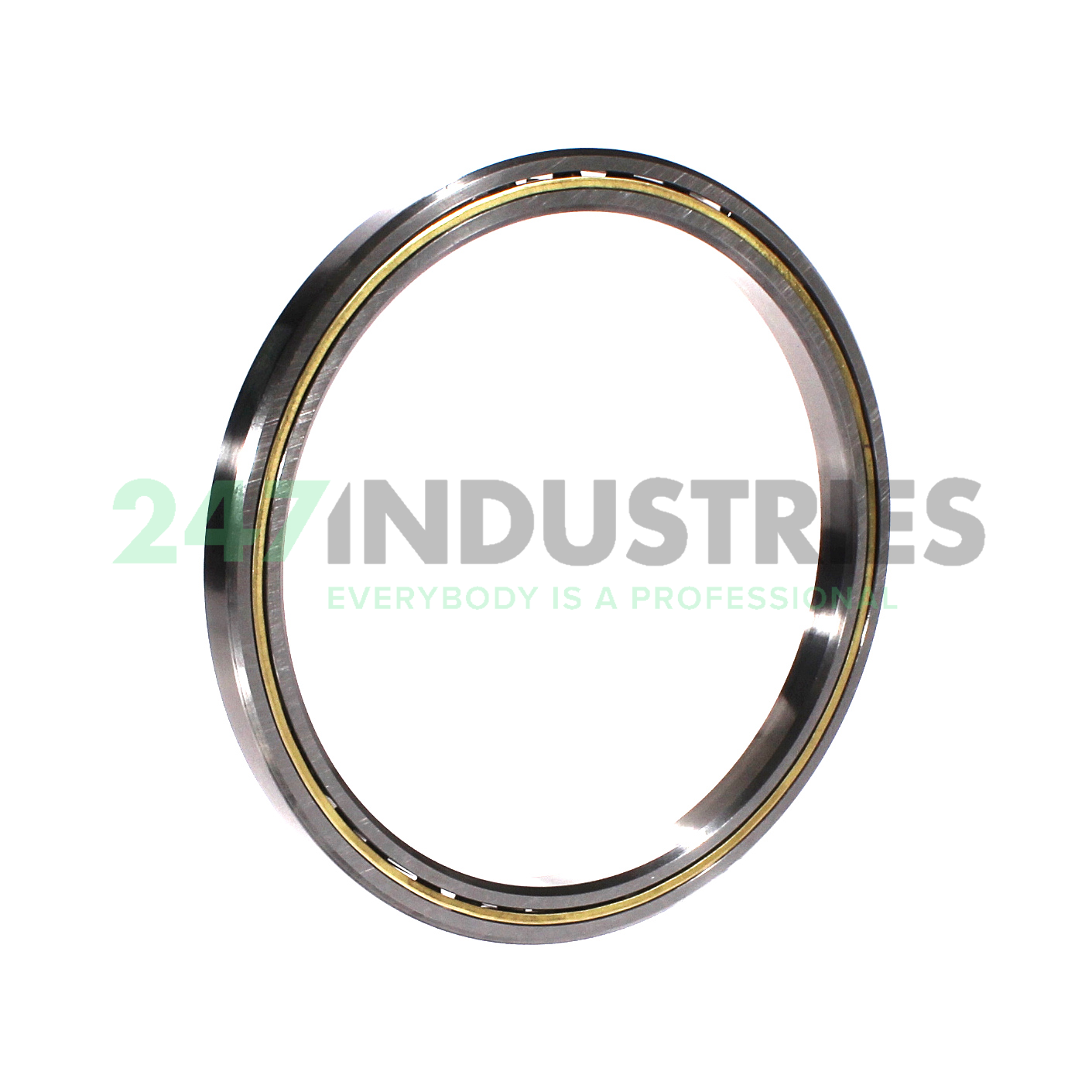

CSXD055-HLE INA

All dimensions

1. Width (b) mm 12,70

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSXD055-HLE INA
4. Also known as 0092325240000
   6000046

5. EAN 4054362039358
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.434

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 28000
2. Radial Dynamic Load Rating Cr (N) 18400
3. Basic static load rating, radial (C 0r) "28000.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSXD, four-point contact bearing
