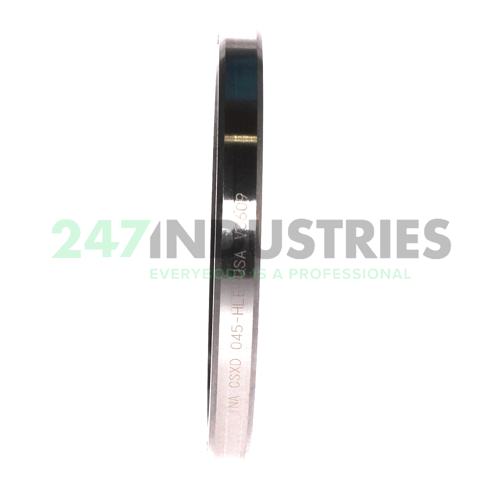

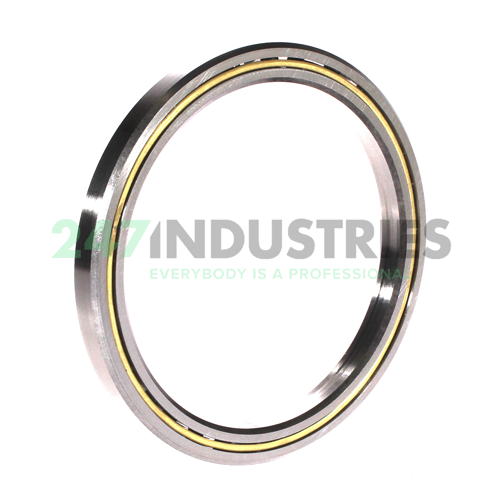

CSXD045-HLE INA

All dimensions

1. Inner (d) MM 114,3
2. Outer (D) MM 139,7
3. Width (B) MM 12,7
4. Inner (d) Inch 4.5
5. Outer (D) Inch 5.5
6. Width (B) Inch 0.5
7. Width (b) mm 12,7

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 11 pcs
2. Brand INA
3. Item number CSXD045-HLE INA
4. Also known as 0508088690000
   6000046
   FPXD408
   KD045XP0
   L18TA408
   NBX11412

5. EAN 4054362039310
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.4

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23300
2. Radial Dynamic Load Rating Cr (N) 17200
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXD, four-point contact bearing
