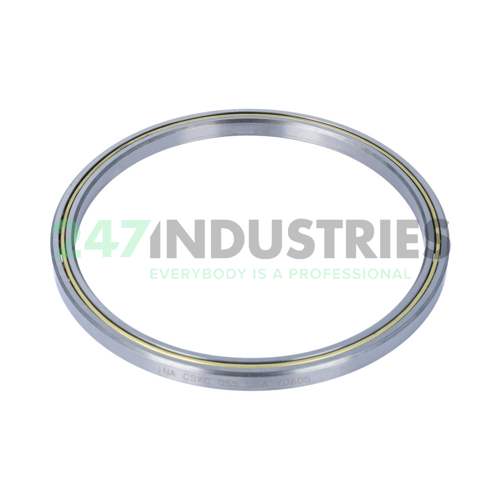

CSXC055-HLE INA

All dimensions

1. Inner (d) MM 139,7
2. Outer (D) MM 158,75
3. Width (B) MM 9,525
4. Inner (d) Inch 5.5
5. Outer (D) Inch 6.25
6. Width (B) Inch 0.375
7. Width (b) mm 9,525

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSXC055-HLE INA
4. Also known as 0037291090000
   6000046
   FPXC508
   KC055XPO
   L18SA508
   NBX13909

5. EAN 4054362039167
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.26

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19600
2. Radial Dynamic Load Rating Cr (N) 11600
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXC, four-point contact bearing
