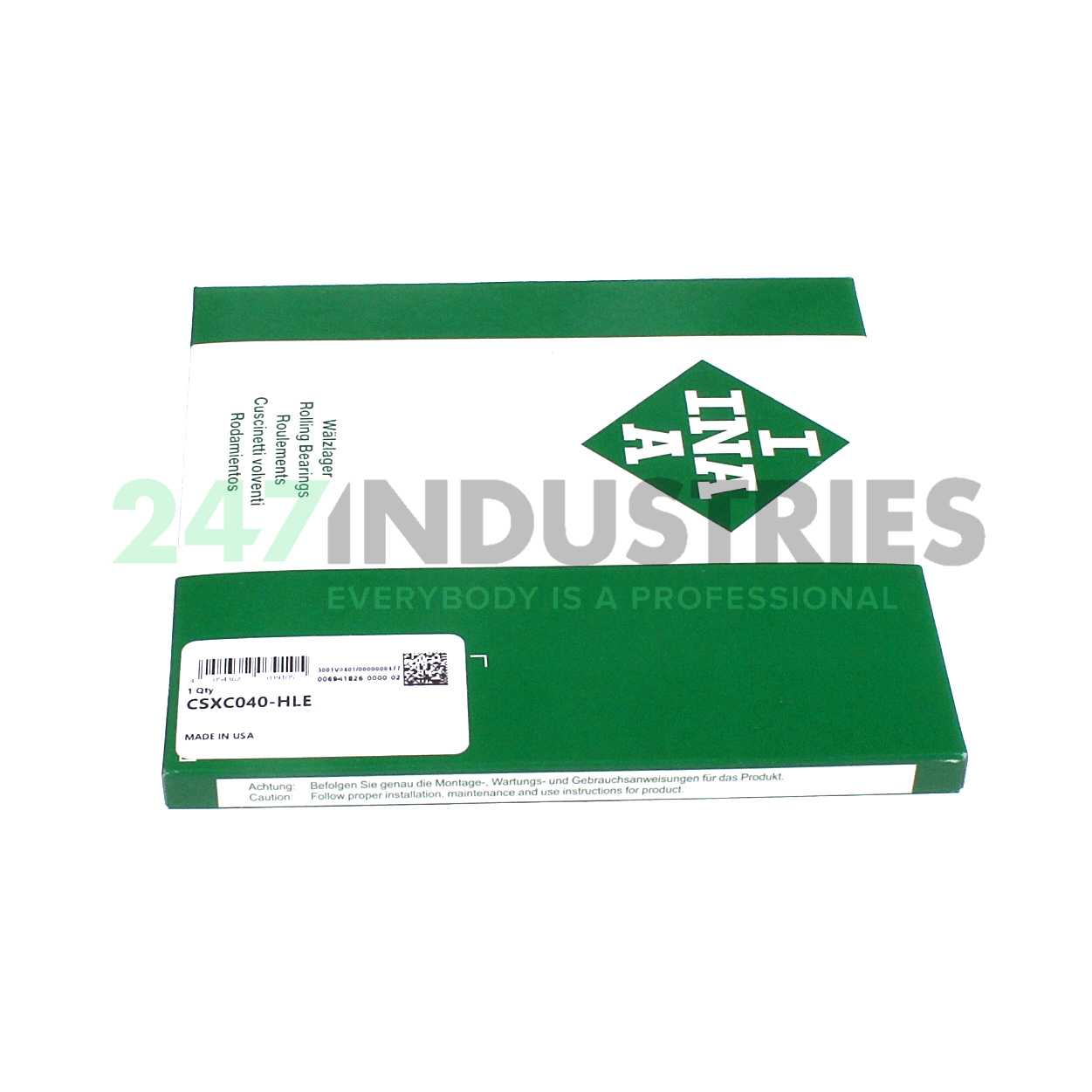

CSXC040-HLE INA

All dimensions

1. Inner (d) MM 101,6
2. Outer (D) MM 120,65
3. Width (B) MM 9,525
4. Inner (d) Inch 4
5. Outer (D) Inch 4.75
6. Width (B) Inch 0.375
7. Width (b) mm 9,525

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs on Wed 11 Feb
2. Brand INA
3. Item number CSXC040-HLE INA
4. Also known as 0069418260000
   6000046
   FPXC400
   KC040XPO
   L18SA400
   NBX10109

5. EAN 4054362039105
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 14400
2. Radial Dynamic Load Rating Cr (N) 10400
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXC, four-point contact bearing
