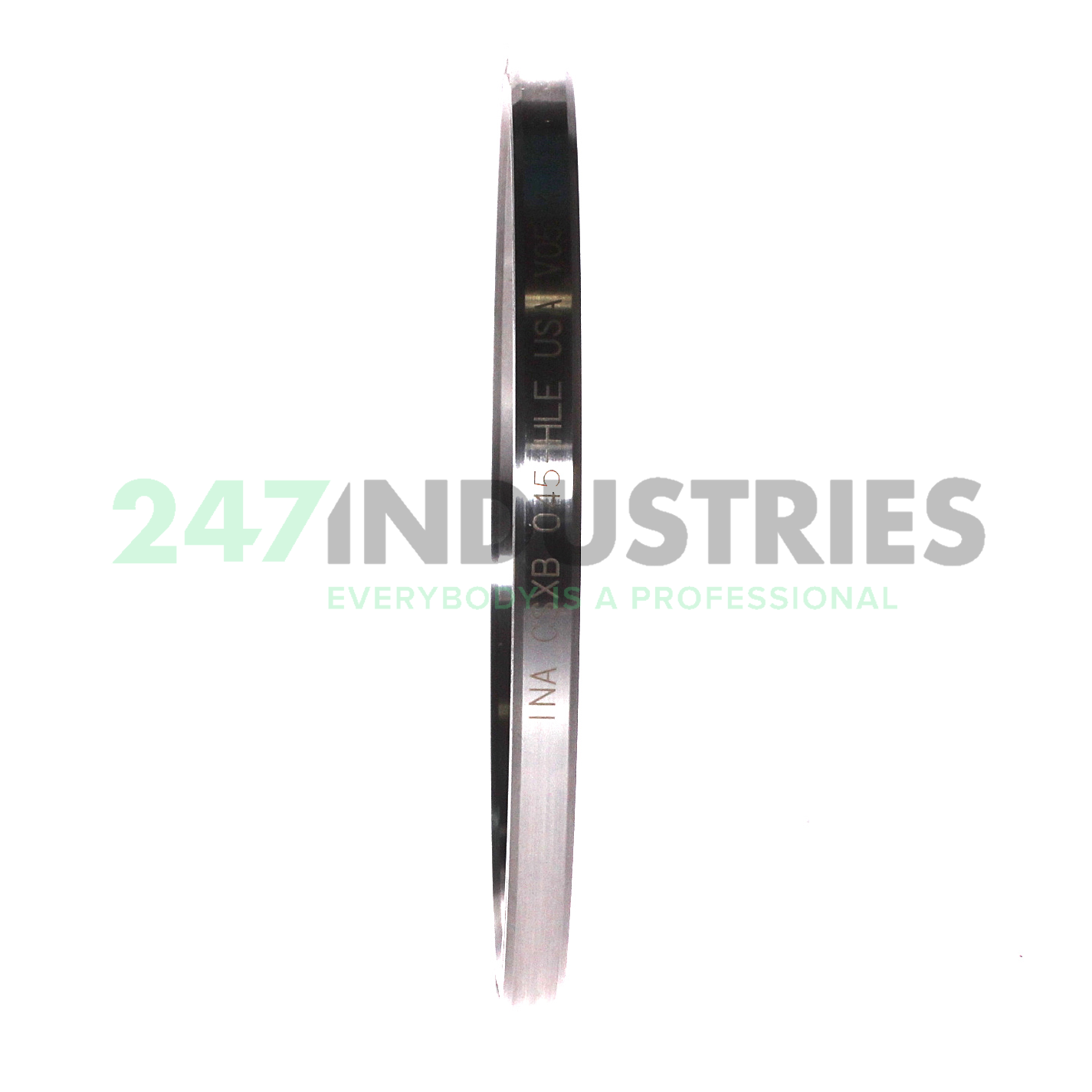

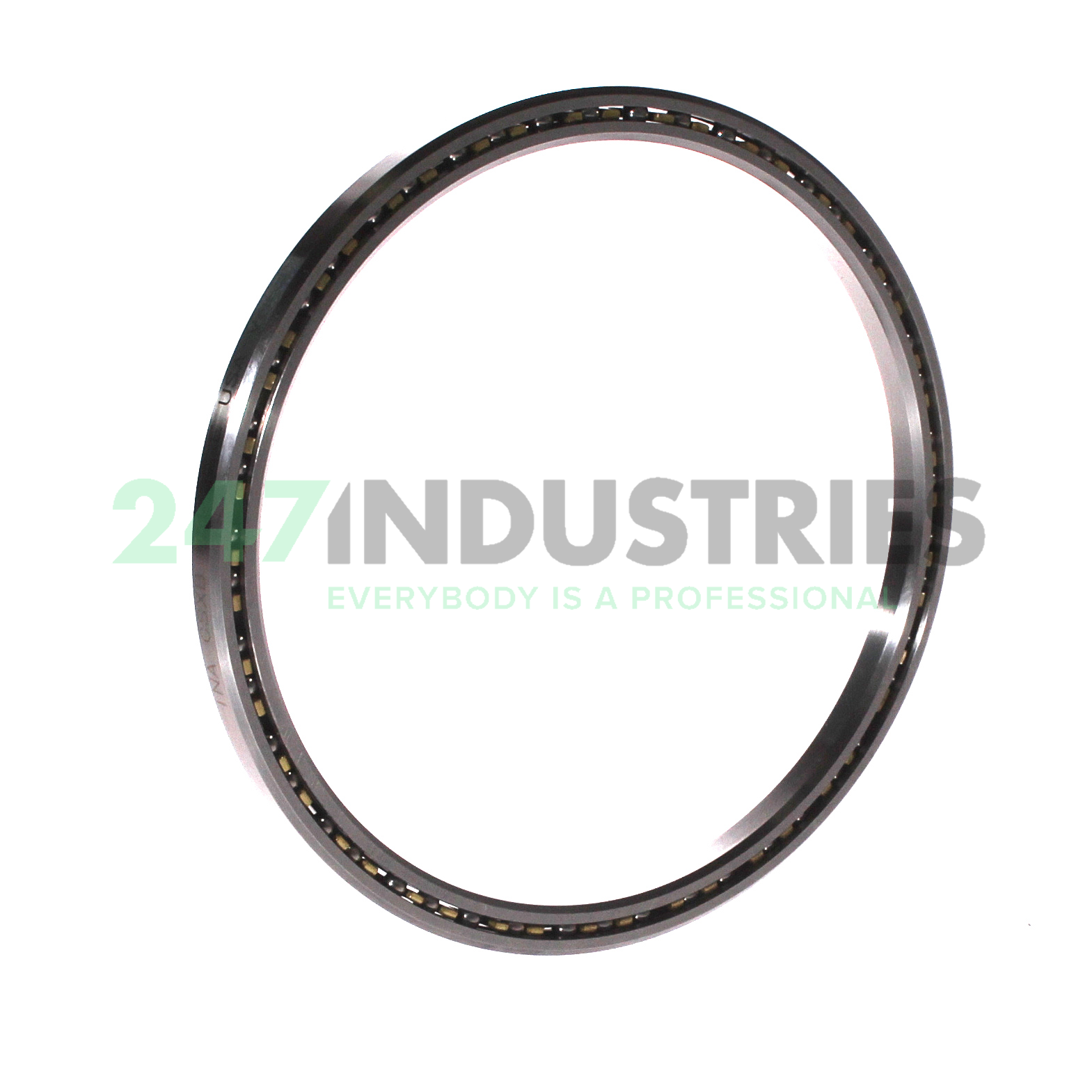

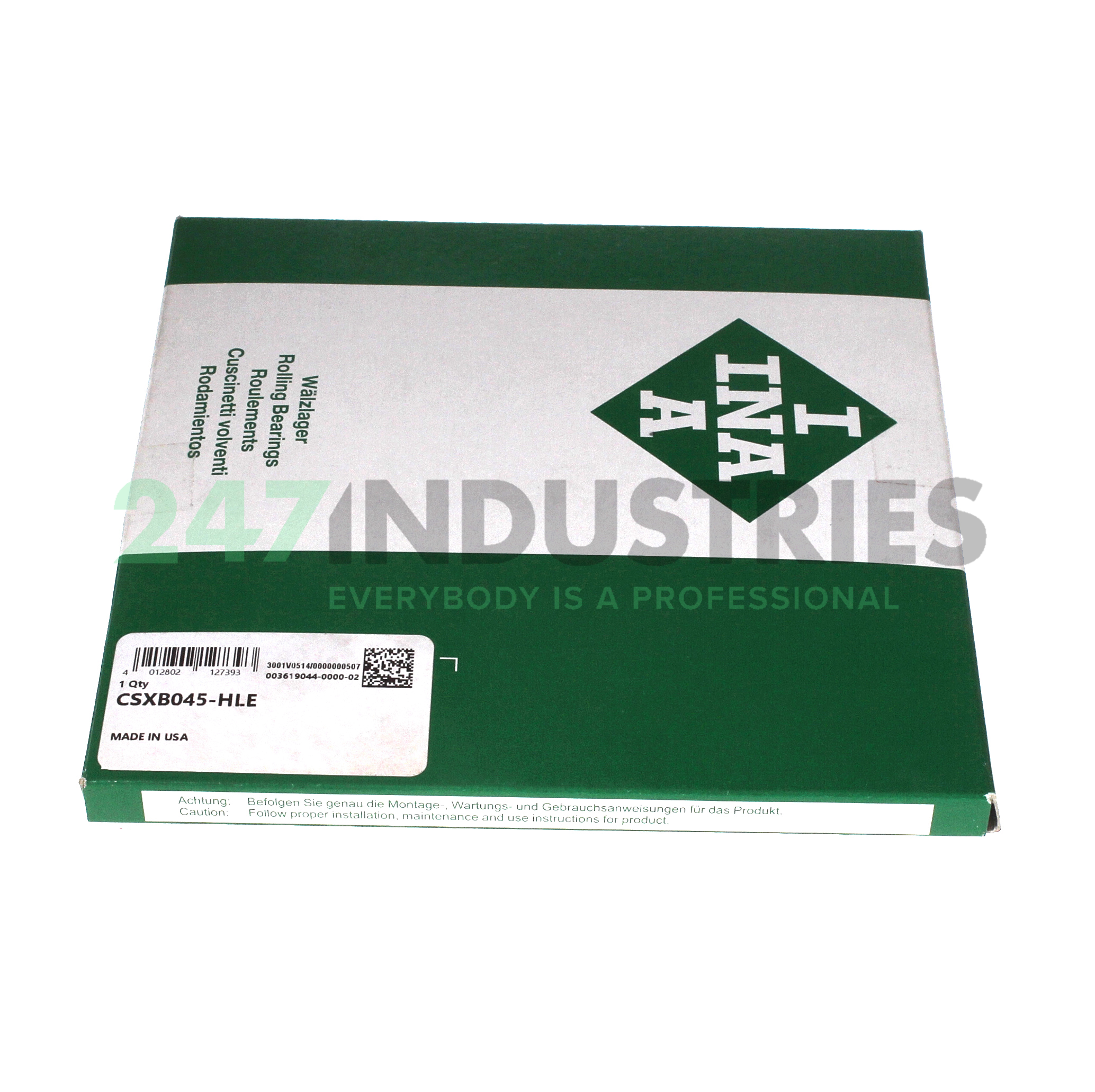

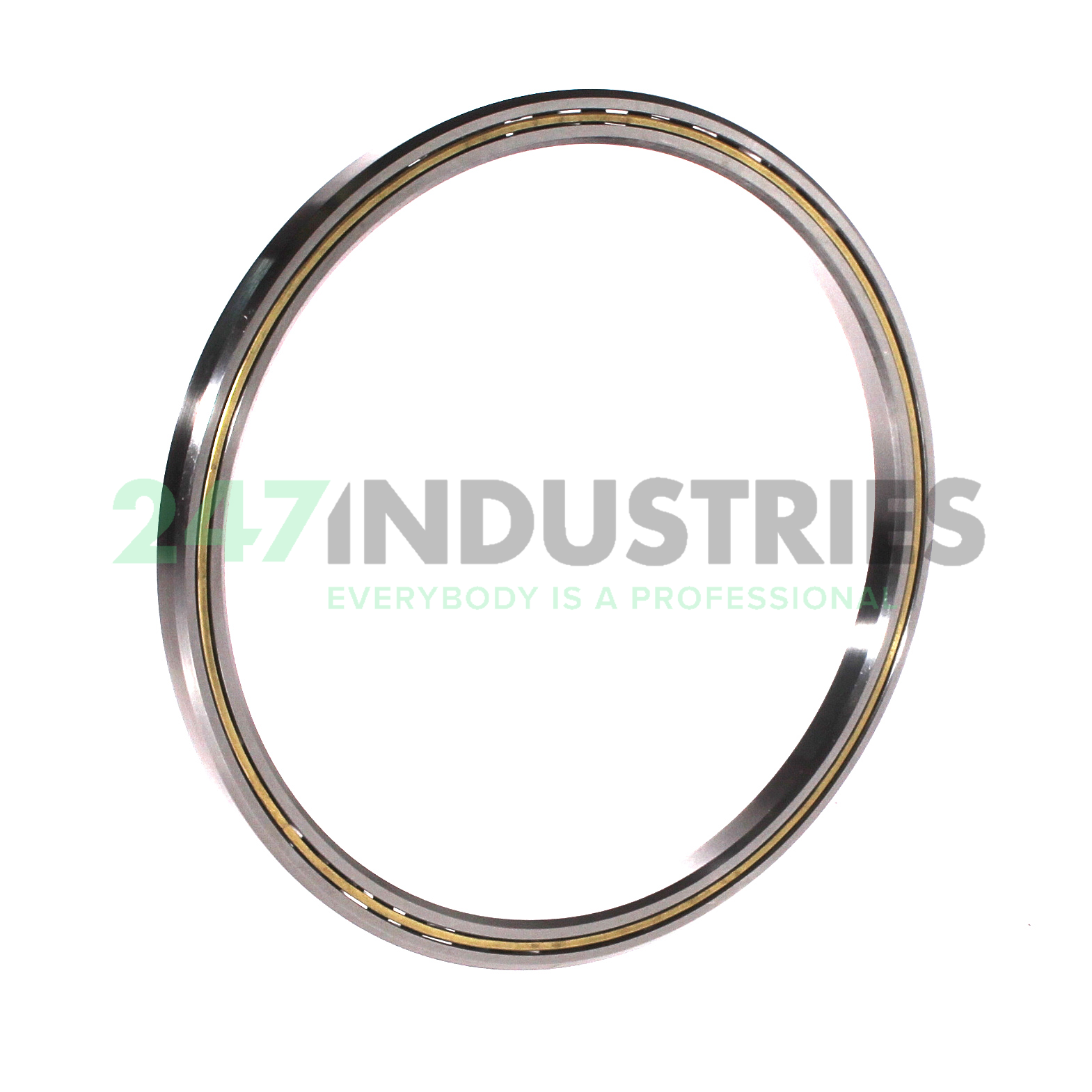

CSXB045-HLE INA

All dimensions

1. Inner (d) MM 114,30
2. Outer (D) MM 130,18
3. Width (B) MM 7,94
4. Inner (d) Inch 4.5000
5. Outer (D) Inch 5.1250
6. Width (B) Inch 0.3125
7. Width (b) mm 7,94

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSXB045-HLE INA
4. Also known as 0036190440000
   6000046
   FPXB408
   KB045XPO
   L18RA408
   NBX11407

5. EAN 4012802127393
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13500
2. Radial Dynamic Load Rating Cr (N) 8400
3. Basic static load rating, radial (C 0r) "13500.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSXB, four-point contact bearing
