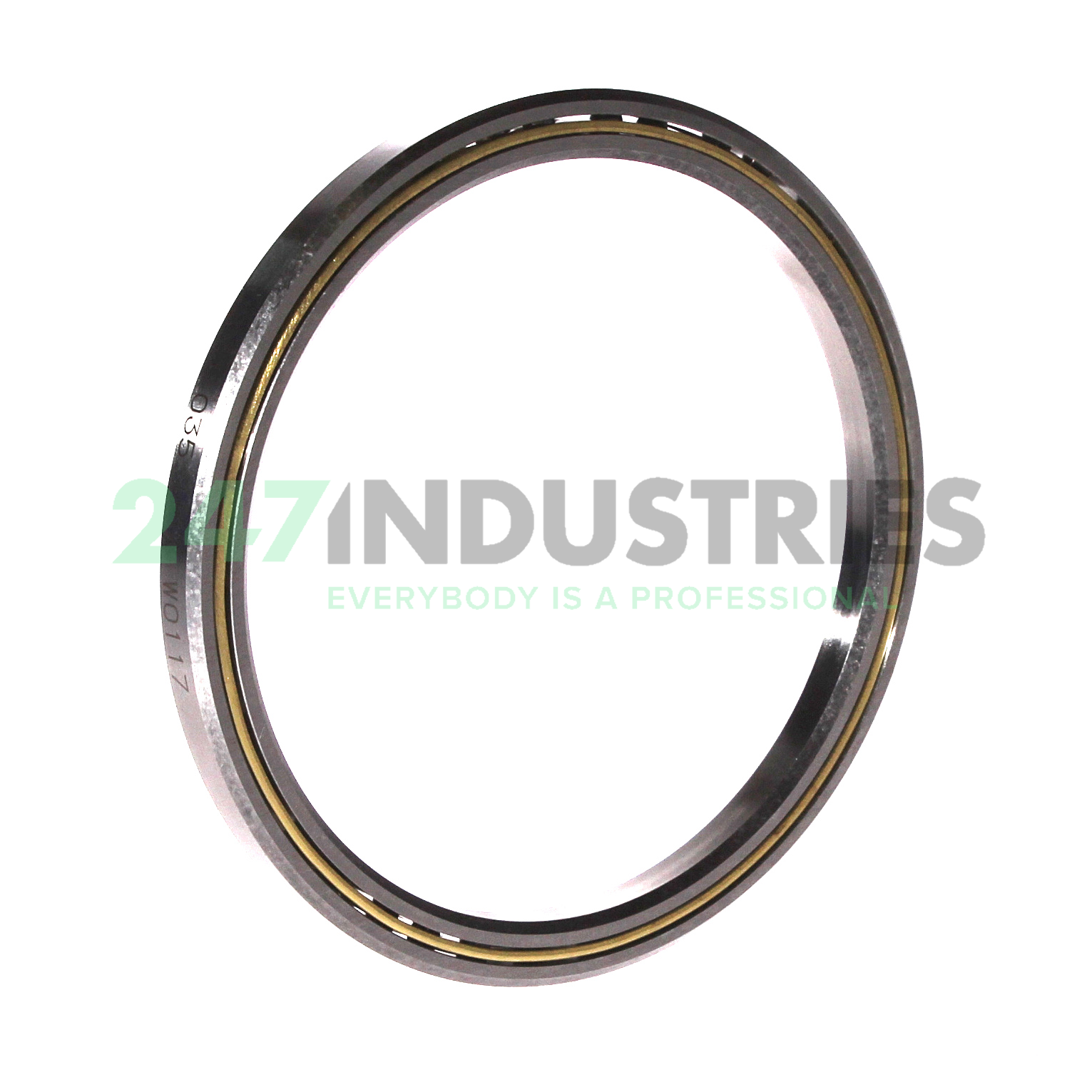

CSXB035-HLE INA

All dimensions

1. Inner (d) MM 88,9
2. Outer (D) MM 104,78
3. Width (B) MM 7,94
4. Inner (d) Inch 3.5
5. Outer (D) Inch 4.125
6. Width (B) Inch 0.3125
7. Width (b) mm 7,938

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 5 pcs
2. Brand INA
3. Item number CSXB035-HLE INA
4. Also known as 0074724200000
   6000046
   FPXB308
   KB035XPO
   L18RA308
   NBX8807

5. EAN 4012802034325
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.108

Product Properties

1. Seal No Seal
2. Cage Type Y - Pressed Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 10600
2. Radial Dynamic Load Rating Cr (N) 7700
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXB, four-point contact bearing
