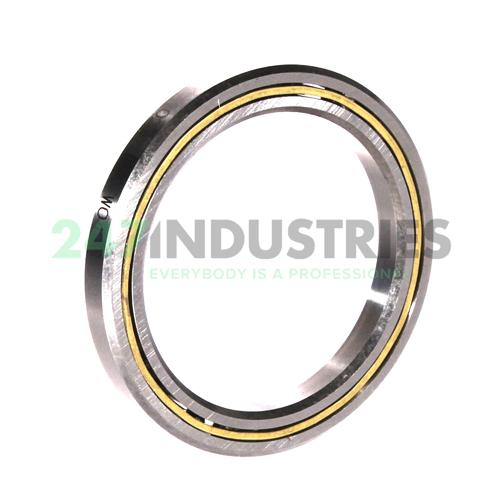

CSXB020-CO15 INA

All dimensions

1. Inner (d) MM 50,8
2. Outer (D) MM 66,68
3. Width (B) MM 7,94
4. Inner (d) Inch 2
5. Outer (D) Inch 2.625
6. Width (B) Inch 0.3125

Suffix description

1. CO15 Factory Location Code, No Additional Meaning, Can Be Used A Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSXB020-CO15 INA
4. Also known as 0933854120000
   6000046
   FPXB200
   KB020XP0
   KB020XPO
   L18RA200
   NBX5007

5. EAN 4054371514891
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.0680389

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-03
2. ECLASS2 number 23-05-08-03

Downloads and links

1. Link to manufacturer Link to manufacturer
