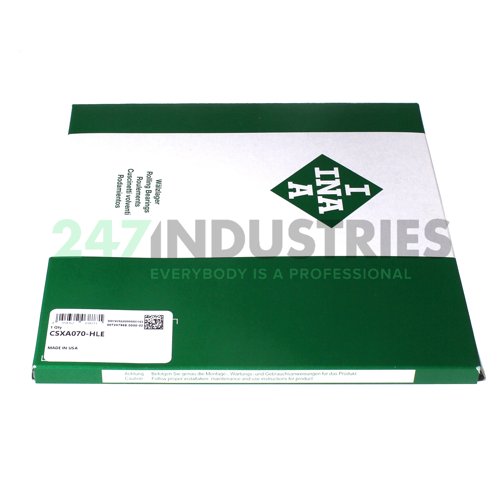

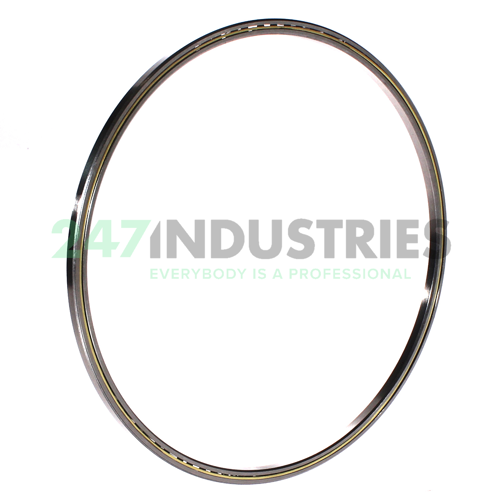

CSXA070-HLE INA

All dimensions

1. Inner (d) MM 177,80
2. Outer (D) MM 190,50
3. Width (B) MM 6,35
4. Inner (d) Inch 7.0000
5. Outer (D) Inch 7.5000
6. Width (B) Inch 0.2500
7. Width (b) mm 6,35

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSXA070-HLE INA
4. Also known as 0073979680000
   6000046
   FPXA700
   KA070XPO
   L18QA700
   NBX17706

5. EAN 4054362038771
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15600
2. Radial Dynamic Load Rating Cr (N) 6800
3. Basic static load rating, radial (C 0r) "15600.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSXA, four-point contact bearing
