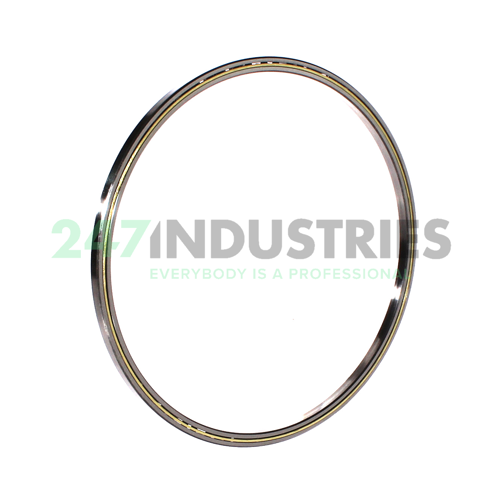

CSXA060-HLE INA

All dimensions

1. Inner (d) MM 152,4
2. Outer (D) MM 165,1
3. Width (B) MM 6,35
4. Inner (d) Inch 6
5. Outer (D) Inch 6.5
6. Width (B) Inch 0.25
7. Width (b) mm 6,35

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSXA060-HLE INA
4. Also known as 0033688820000
   6000046
   FPXA600
   KA060XPO
   L18QA600
   NBX15206

5. EAN 4012802368468
6. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.122

Product Properties

1. Seal No Seal
2. Cage Type Y - Pressed Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13400
2. Radial Dynamic Load Rating Cr (N) 6500
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSXA, four-point contact bearing
