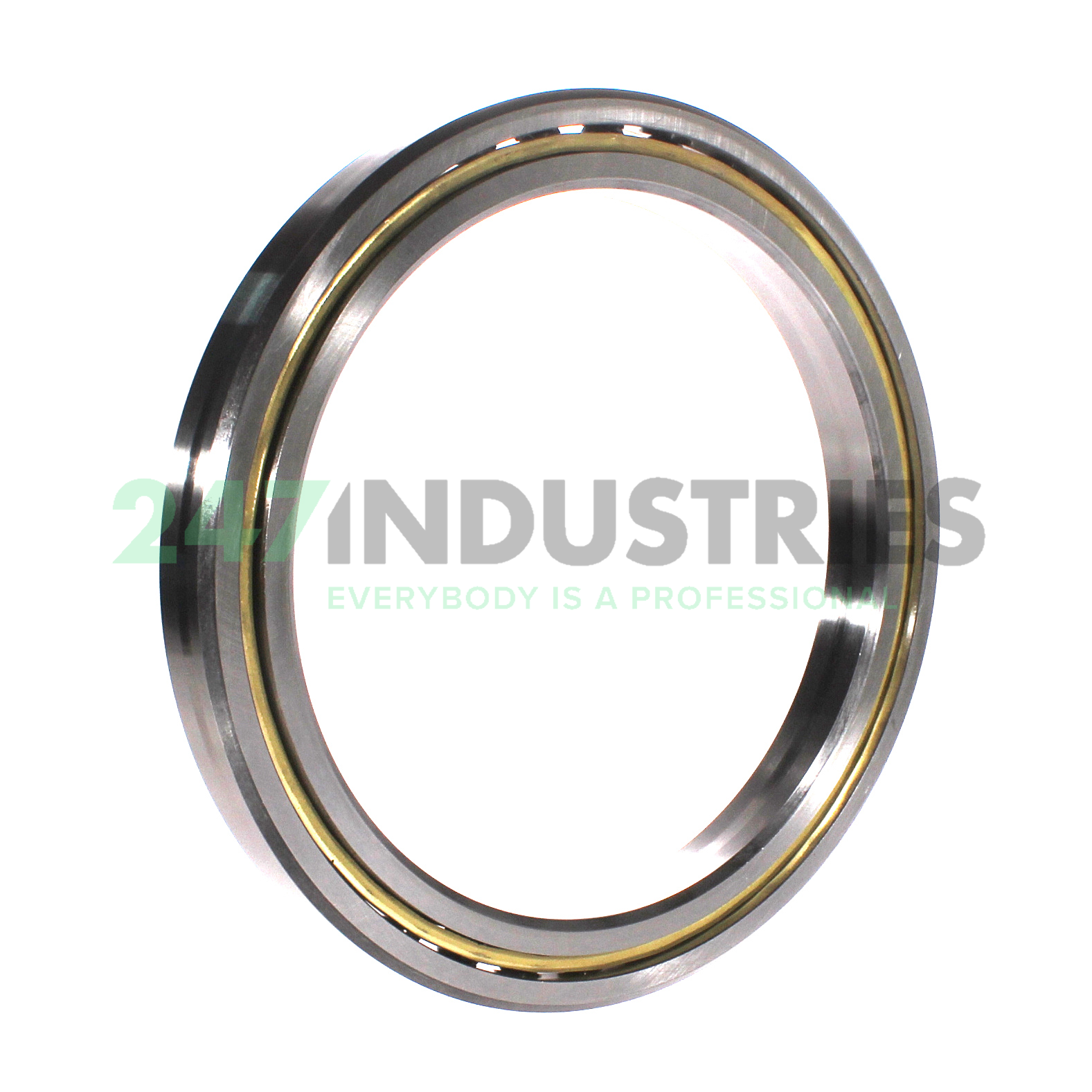

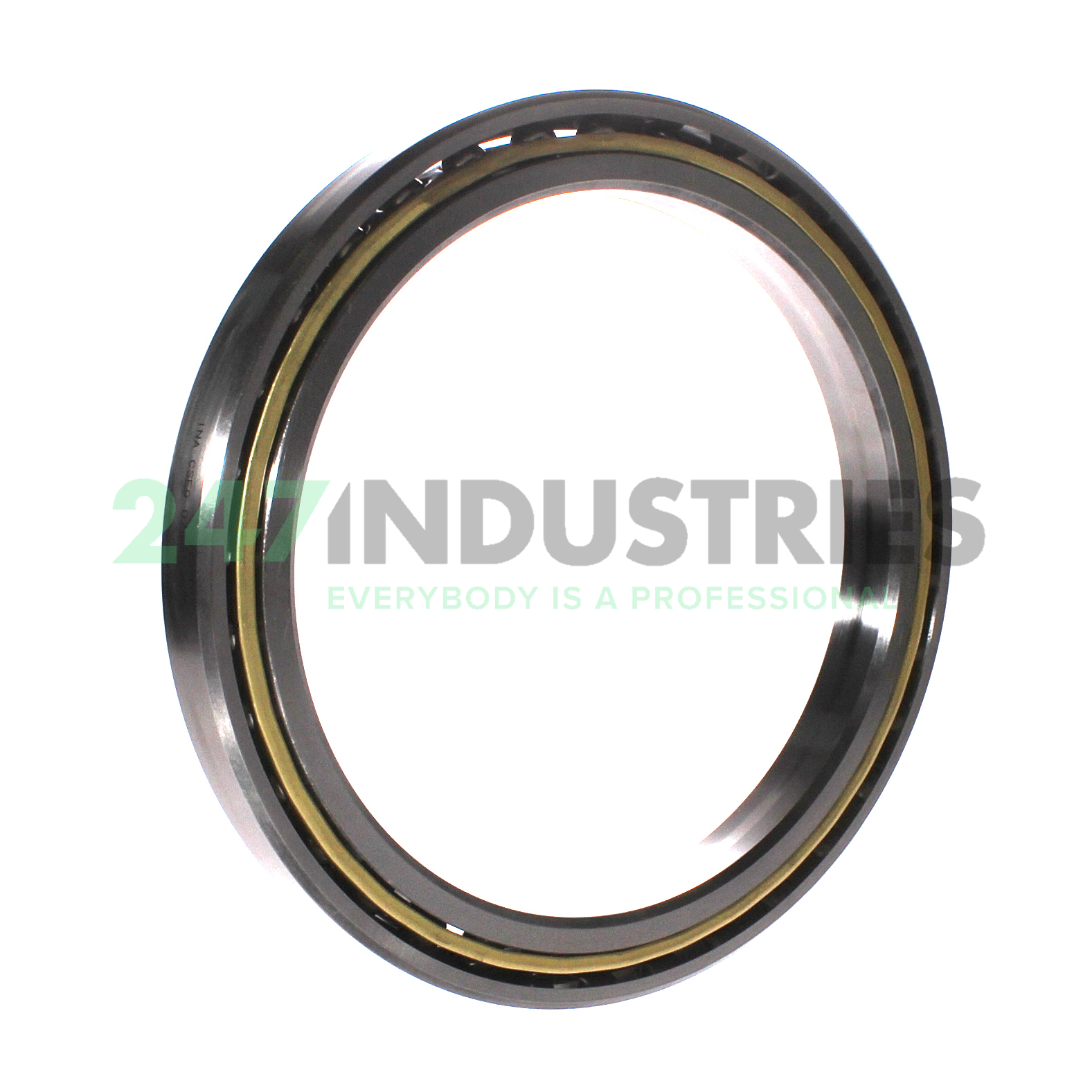

CSEG075-HLE INA

All dimensions

1. Inner (d) MM 190,50
2. Outer (D) MM 241,30
3. Width (B) MM 25,40
4. Inner (d) Inch 7.5000
5. Outer (D) Inch 9.5000
6. Width (B) Inch 1.0000
7. Width (b) mm 25,40

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSEG075-HLE INA
4. Also known as 0035547910000
   6000046
   FPAG708
   KG075ARO
   L15WA708
   NBA19025

5. EAN 4054362038399
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.79

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision ABEC.1 Tolerances
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 63000
2. Radial Dynamic Load Rating Cr (N) 47000
3. Basic static load rating, radial (C 0r) "63000.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSEG, angular contact ball bearing
