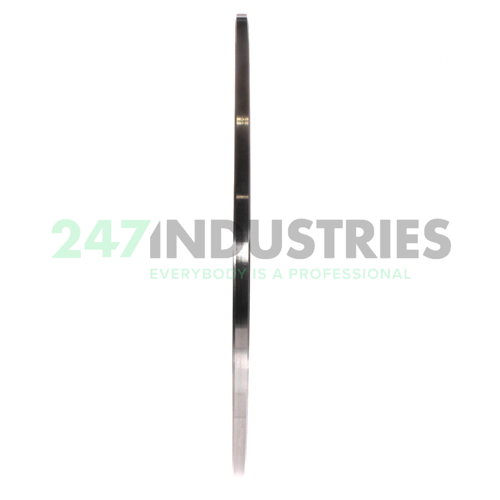

CSED180-HLE INA

All dimensions

1. Inner (d) MM 457,20
2. Outer (D) MM 482,60
3. Width (B) MM 12,70
4. Inner (d) Inch 18.0000
5. Outer (D) Inch 19.0000
6. Width (B) Inch 0.5000
7. Width (b) mm 12,70

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSED180-HLE INA
4. Also known as 0011395250000
   FPAD1800
   KD180ARO

5. EAN 4012802426557
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.492

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision ABEC.1 Tolerances
4. Contact Angle Standard Contact Angle
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 60000
2. Radial Dynamic Load Rating Cr (N) 20800
3. Basic static load rating, radial (C 0r) "60000.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSED, angular contact ball bearing
