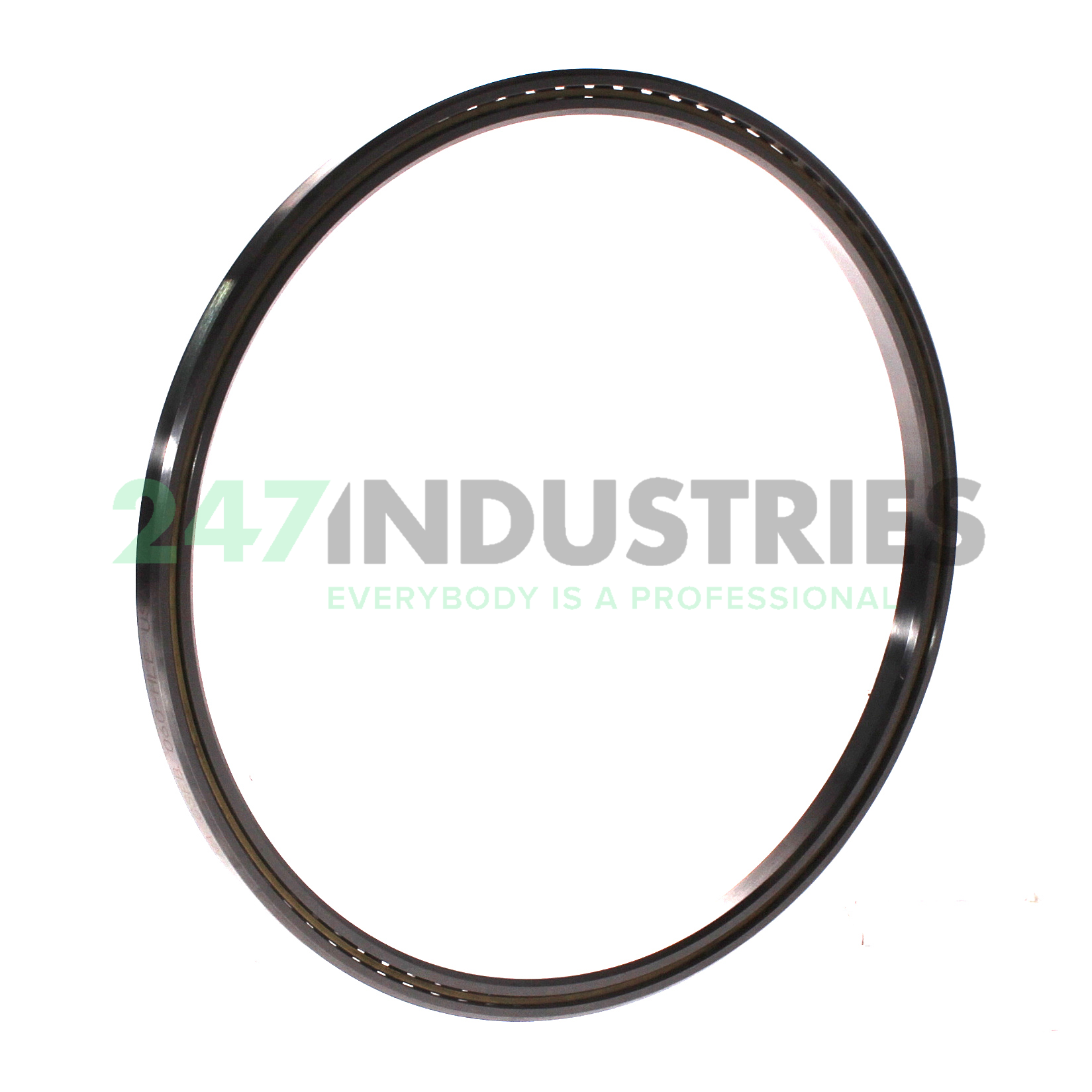

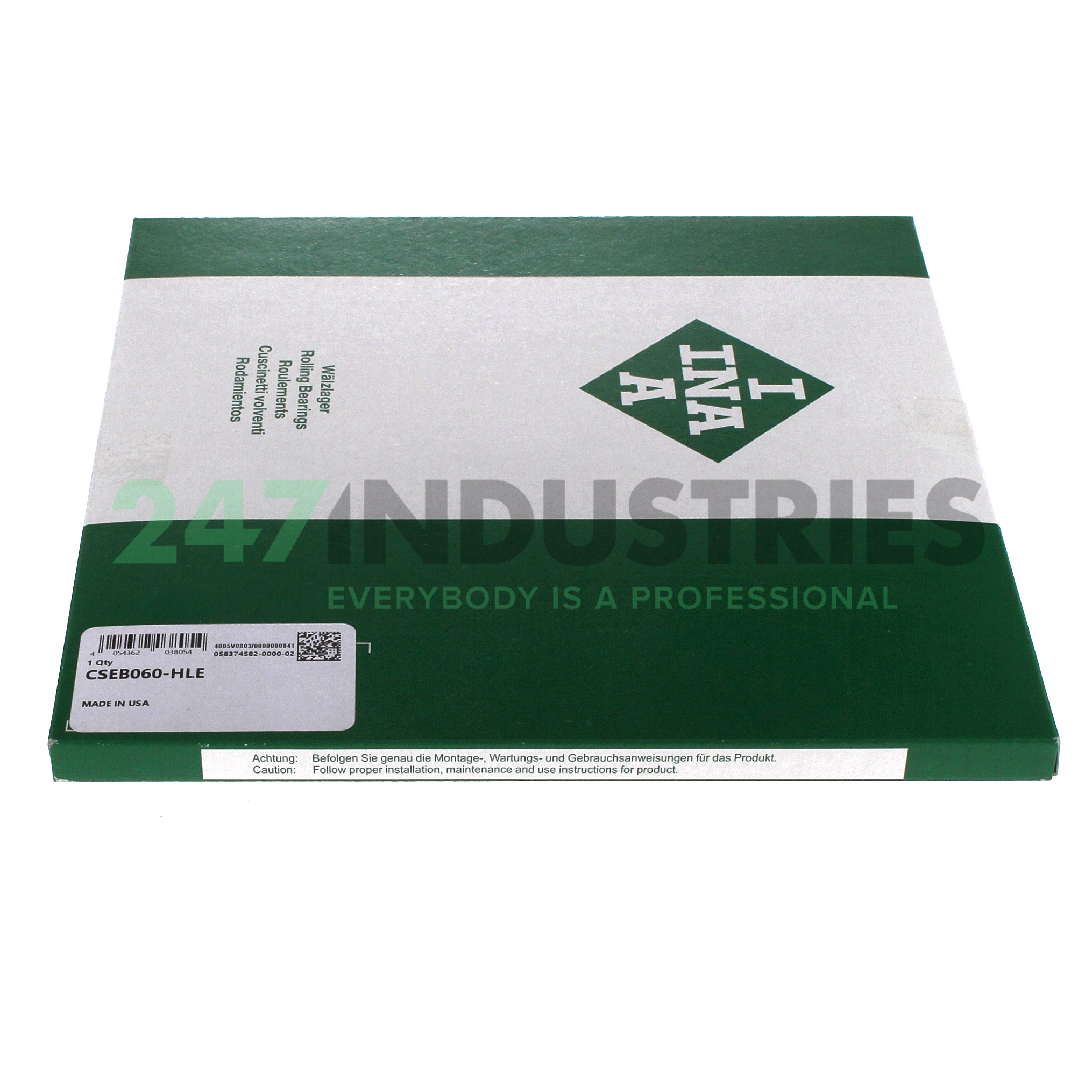

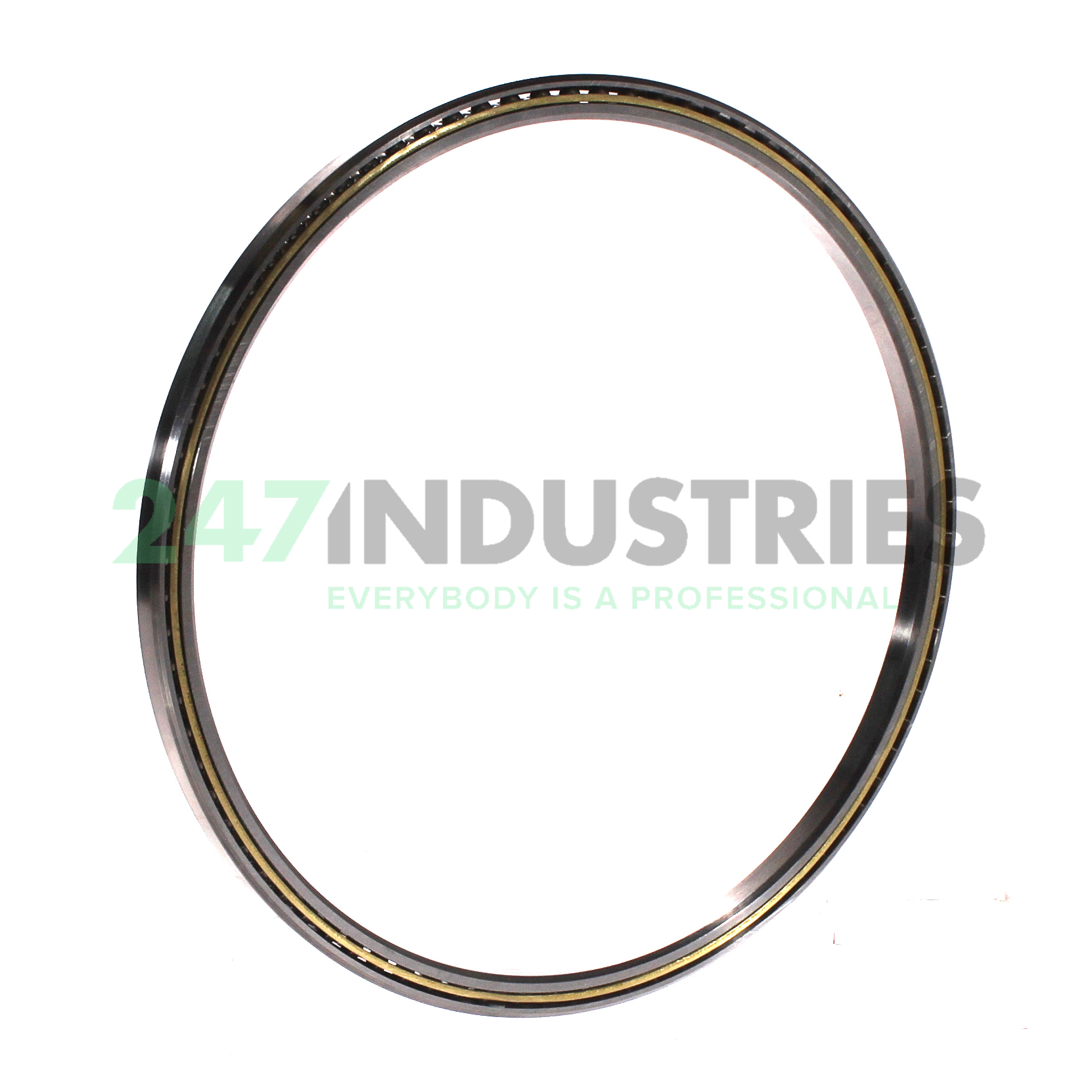

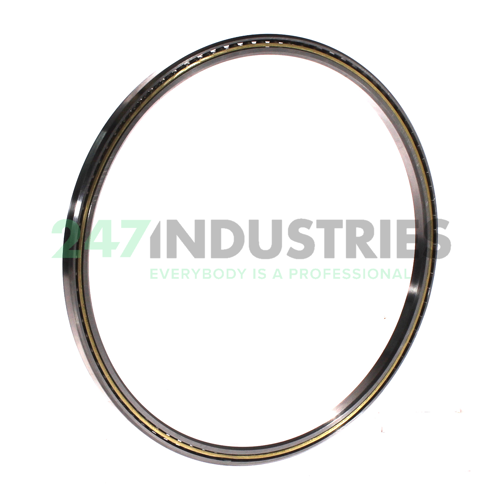

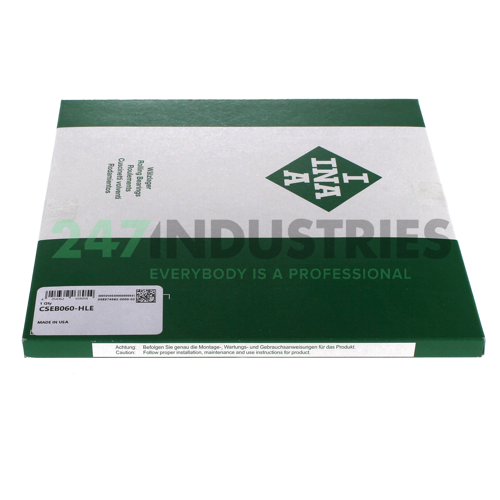

CSEB060-HLE INA

All dimensions

1. Inner (d) MM 152,40
2. Outer (D) MM 168,28
3. Width (B) MM 7,94
4. Inner (d) Inch 6.0000
5. Outer (D) Inch 6.6250
6. Width (B) Inch 0.3125
7. Width (b) mm 7,94

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSEB060-HLE INA
4. Also known as 0583745820000
   6000046
   FPAB600
   KB060AR0
   L15RA600
   NBA15207

5. EAN 4054362038054
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.2

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision ABEC.1 Tolerances
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 12100
2. Radial Dynamic Load Rating Cr (N) 7000
3. Basic static load rating, radial (C 0r) "12100.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSEB, angular contact ball bearing

Downloads and links

1. Link to manufacturer Link to manufacturer
