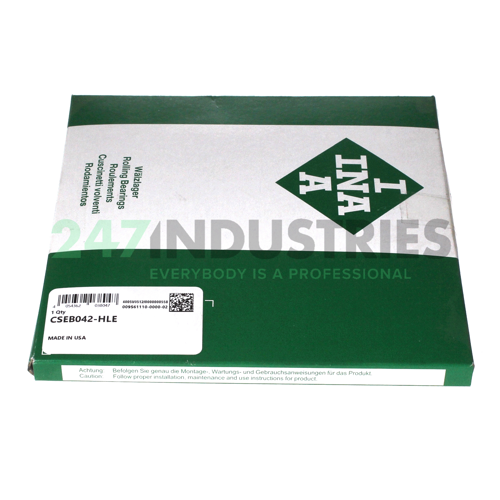

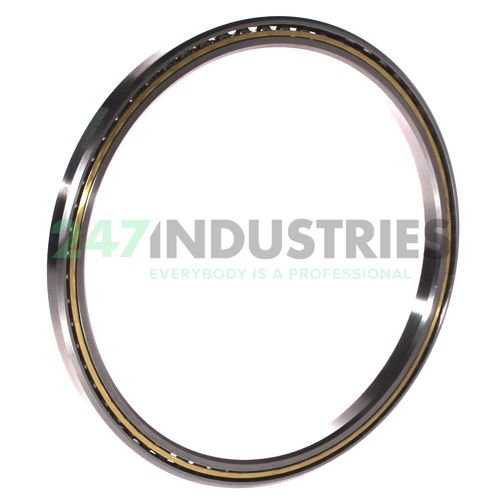

CSEB042-HLE INA

All dimensions

1. Inner (d) MM 107,95
2. Outer (D) MM 123,83
3. Width (B) MM 7,9375
4. Inner (d) Inch 4.25
5. Outer (D) Inch 4.875
6. Width (B) Inch 0.3125
7. Width (b) mm 7,938

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSEB042-HLE INA
4. Also known as 0095611100000
   6000046
   FPAB404
   KB042AR0
   KB042ARO
   L15RA404
   NBA10707

5. EAN 4054362038047
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.073

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision ABEC.1 Tolerances
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 8600
2. Radial Dynamic Load Rating Cr (N) 6200
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSEB, angular contact ball bearing
