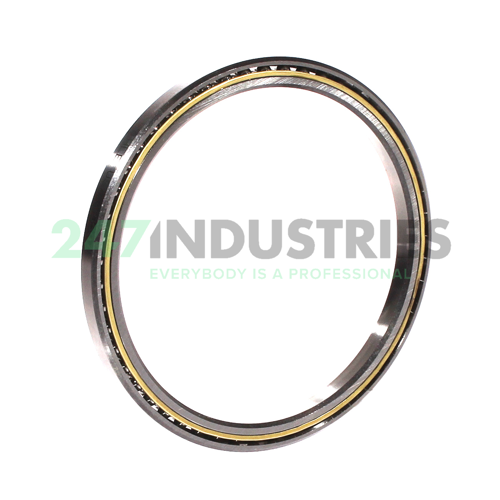

CSEB035-HLE INA

All dimensions

1. Inner (d) MM 88,9
2. Outer (D) MM 104,775
3. Width (B) MM 7,9375
4. Inner (d) Inch 3.5
5. Outer (D) Inch 4.125
6. Width (B) Inch 0.3125
7. Width (b) mm 7,938

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number CSEB035-HLE INA
4. Also known as 0092996700000
   6000046
   FPAB308
   KB035AR0
   L15RA308
   NBA8807

5. EAN 4054362038023
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.12

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision ABEC.1 Tolerances
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7100
2. Radial Dynamic Load Rating Cr (N) 5800
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSEB, angular contact ball bearing
