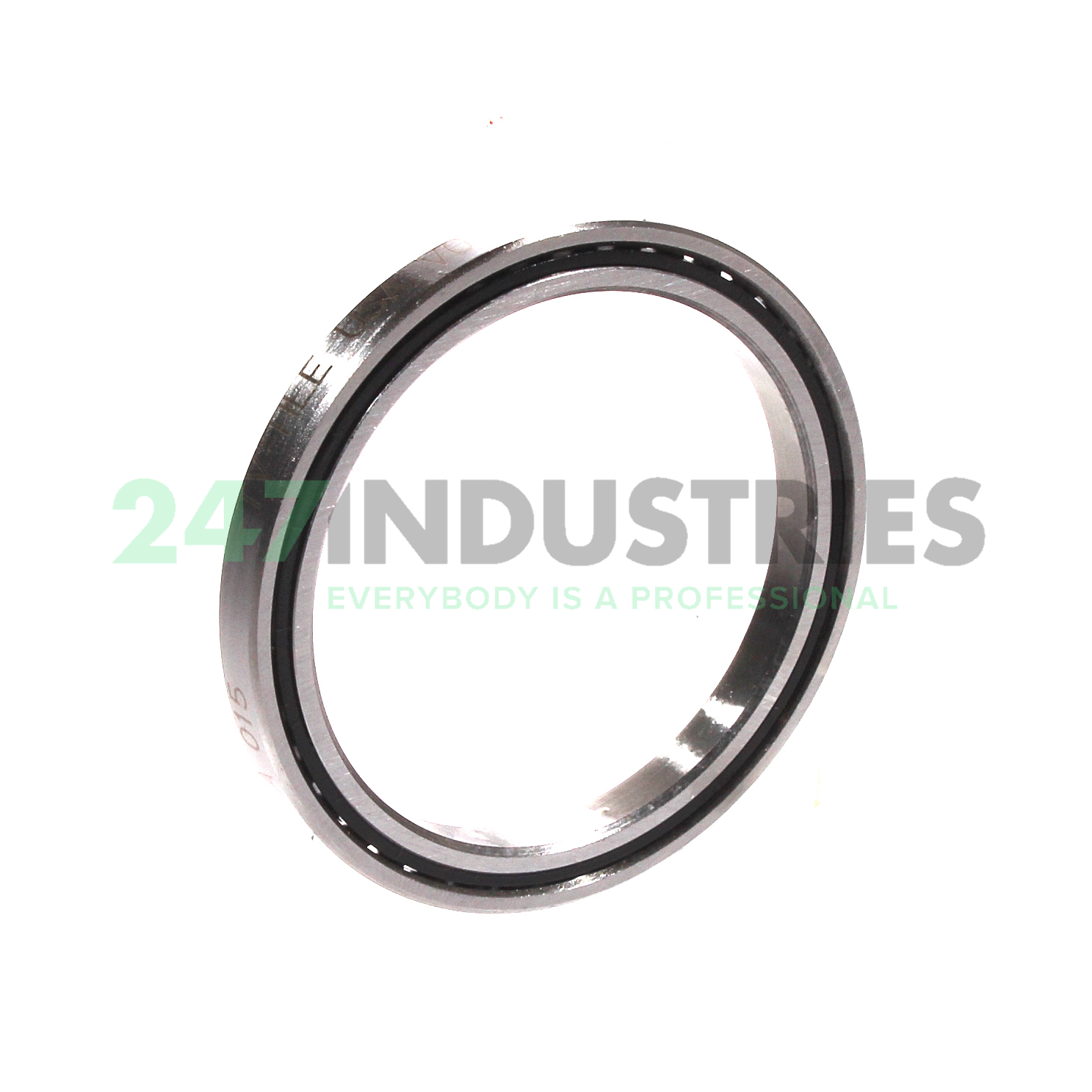

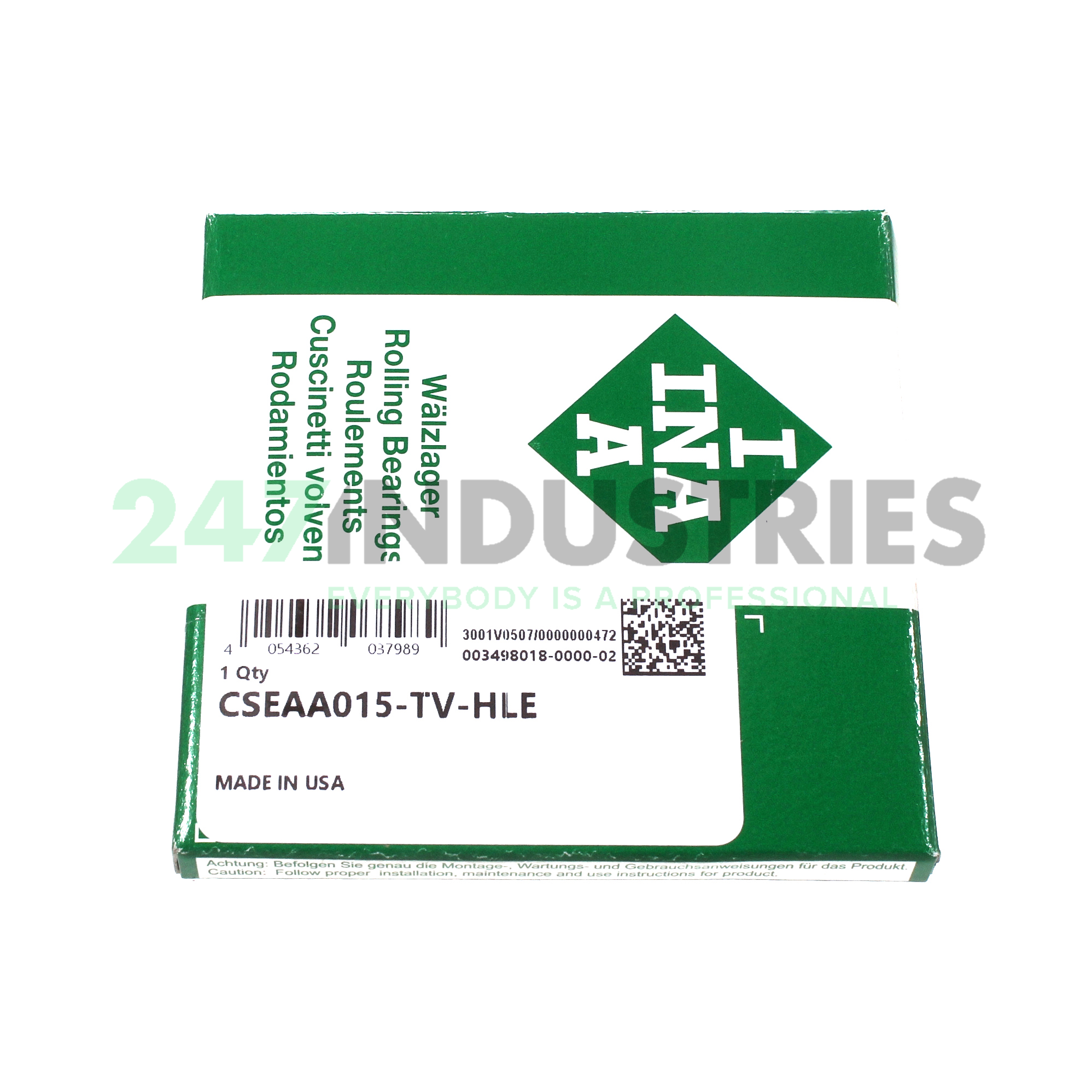

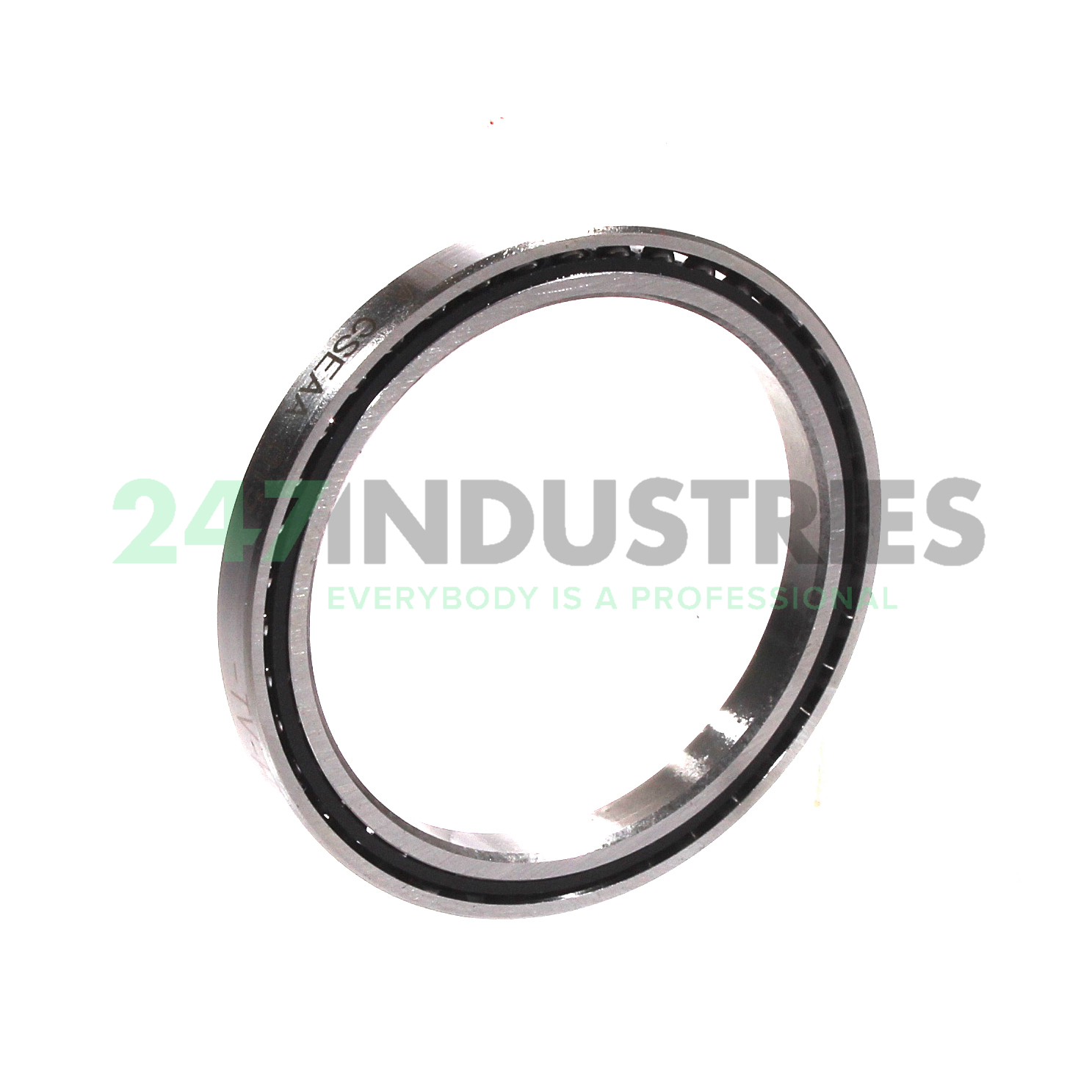

CSEAA015-TV-HLE INA

All dimensions

1. Inner (d) MM 38,1
2. Outer (D) MM 47,625
3. Width (B) MM 4,7625
4. Inner (d) Inch 1.5
5. Outer (D) Inch 1.875
6. Width (B) Inch 0.1875
7. Width (b) mm 4,763

Suffix description

1. TV Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number CSEAA015-TV-HLE INA
4. Also known as 0034980180000
   6000046

5. EAN 4054362037989
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.02

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 1860
2. Radial Dynamic Load Rating Cr (N) 2050
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSEAA..-TV, angular contact ball bearing
