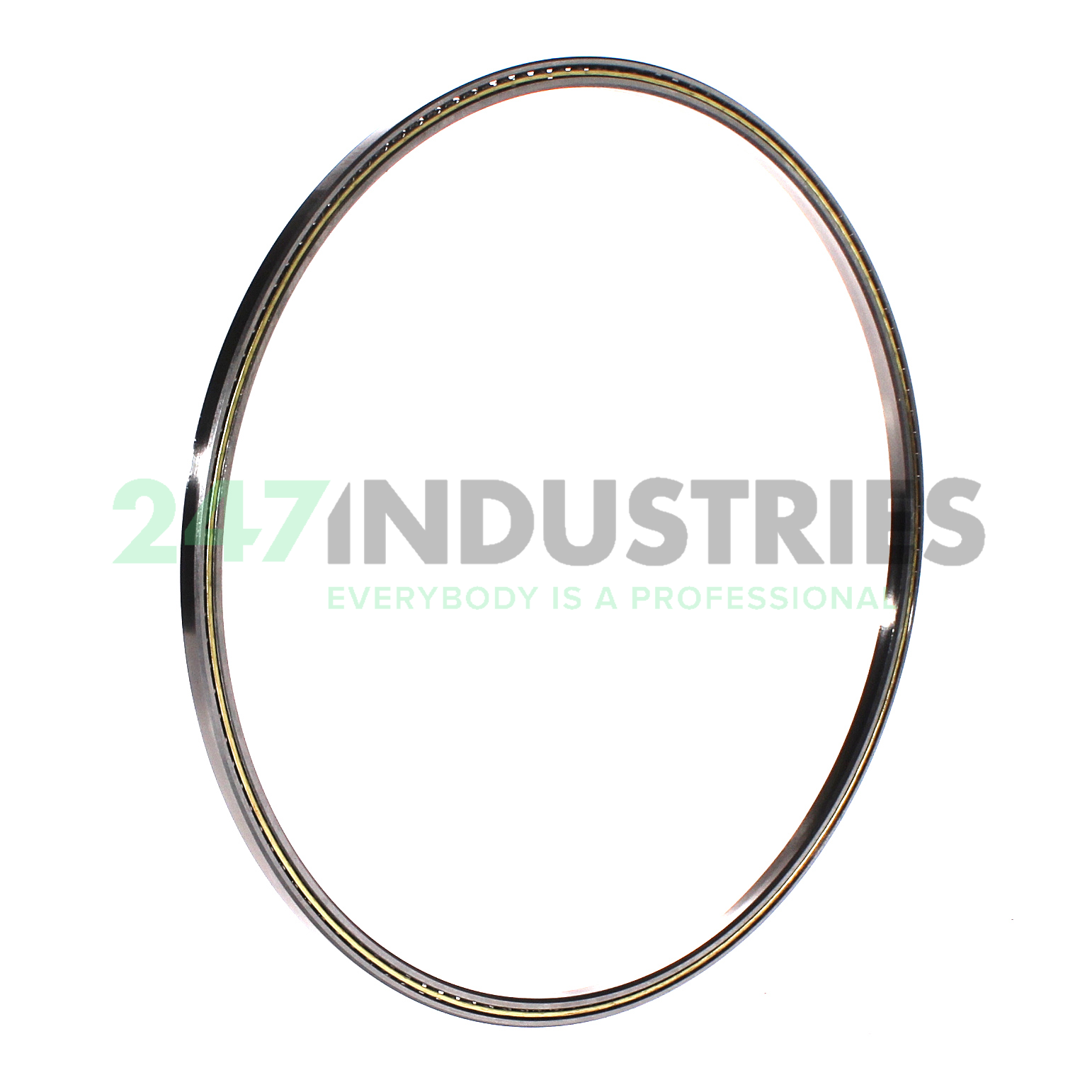

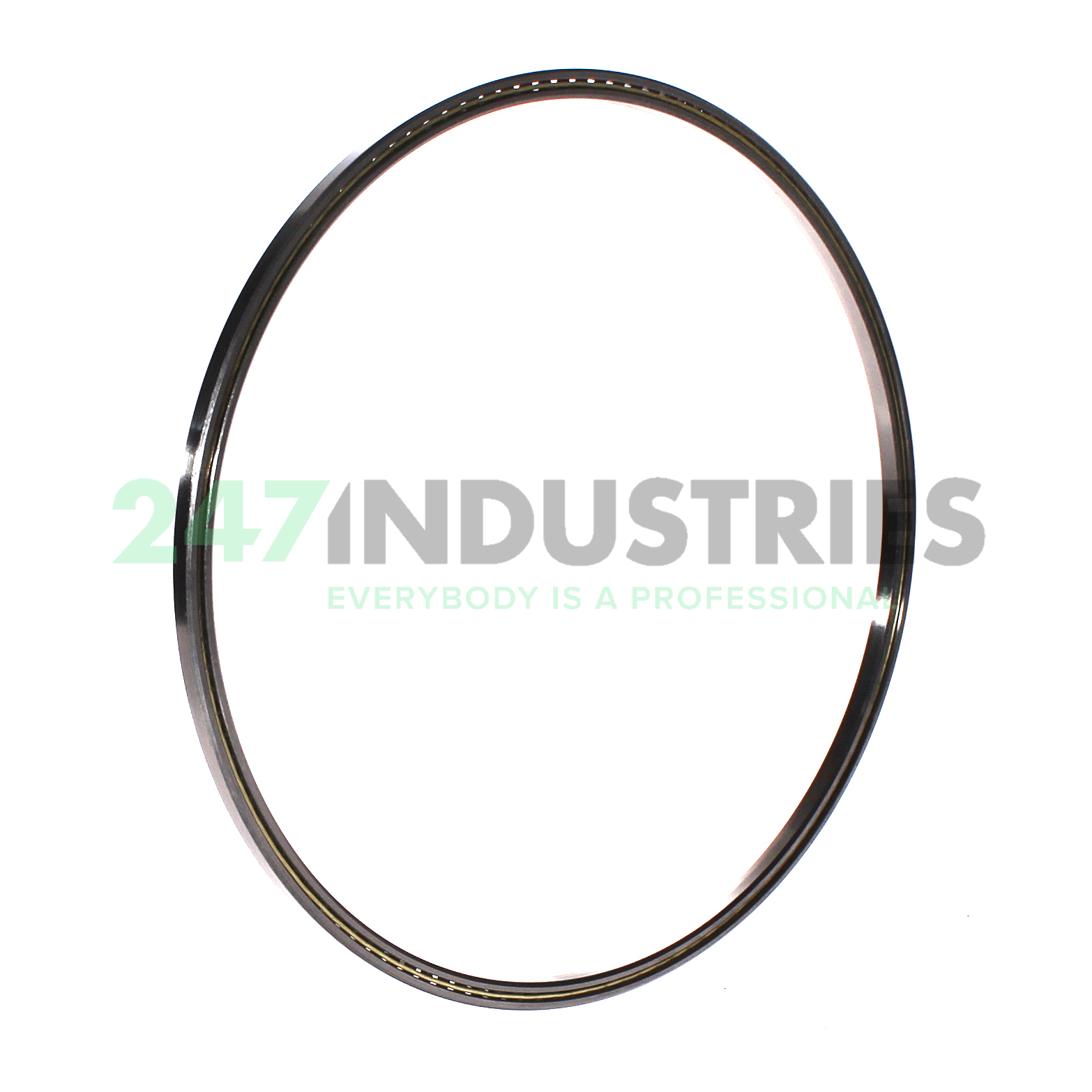

CSEA075-HLE INA

All dimensions

1. Inner (d) MM 190,50
2. Outer (D) MM 203,20
3. Width (B) MM 6,35
4. Inner (d) Inch 7.5000
5. Outer (D) Inch 8.0000
6. Width (B) Inch 0.2500
7. Width (b) mm 6,35

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSEA075-HLE INA
4. Also known as 0611988110000
   6000046
   FPAA708
   KA075ARO
   L15QA708

5. EAN 4054362037965
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.16

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11100
2. Radial Dynamic Load Rating Cr (N) 5200
3. Basic static load rating, radial (C 0r) "11100.0000"
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Thin Section Bearing CSEA, angular contact ball bearing
