CSEA040-HLE INA

639,04 ex VAT
€ 773,24 in VAT
€ 773,24 in VAT
639,04 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

CSEA040-HLE INA

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number CSEA040-HLE INA
Inside diameter 101,6mm
Outside diameter 114,3mm
Width 6,35mm
Product description
Help with this product

Downloads and links

Similar to: CSEA040-HLE INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 101,6
  2. Outer (D) MM 114,3
  3. Width (B) MM 6,35
  4. Inner (d) Inch 4
  5. Outer (D) Inch 4.5
  6. Width (B) Inch 0.25
  7. Width (b) mm 6,35

Suffix description

  1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number CSEA040-HLE INA
  4. Also known as 0091154550000
    6000046
    FPAA400
    KA040ARO
    L15QA400
    NBA10106
  5. EAN 4012802368628
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.09

Product Properties

  1. Seal No Seal
  2. Cage Type M - Brass Cage
  3. Precision Standard Precision
  4. Contact Angle 30 degrees
  5. Pairing No pairing
  6. Axial Internal Clearance / Preload No Preload
  7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6000
  2. Radial Dynamic Load Rating Cr (N) 4150
  3. ECLASS number 23-05-08-03
  4. ECLASS2 number 23-05-08-03

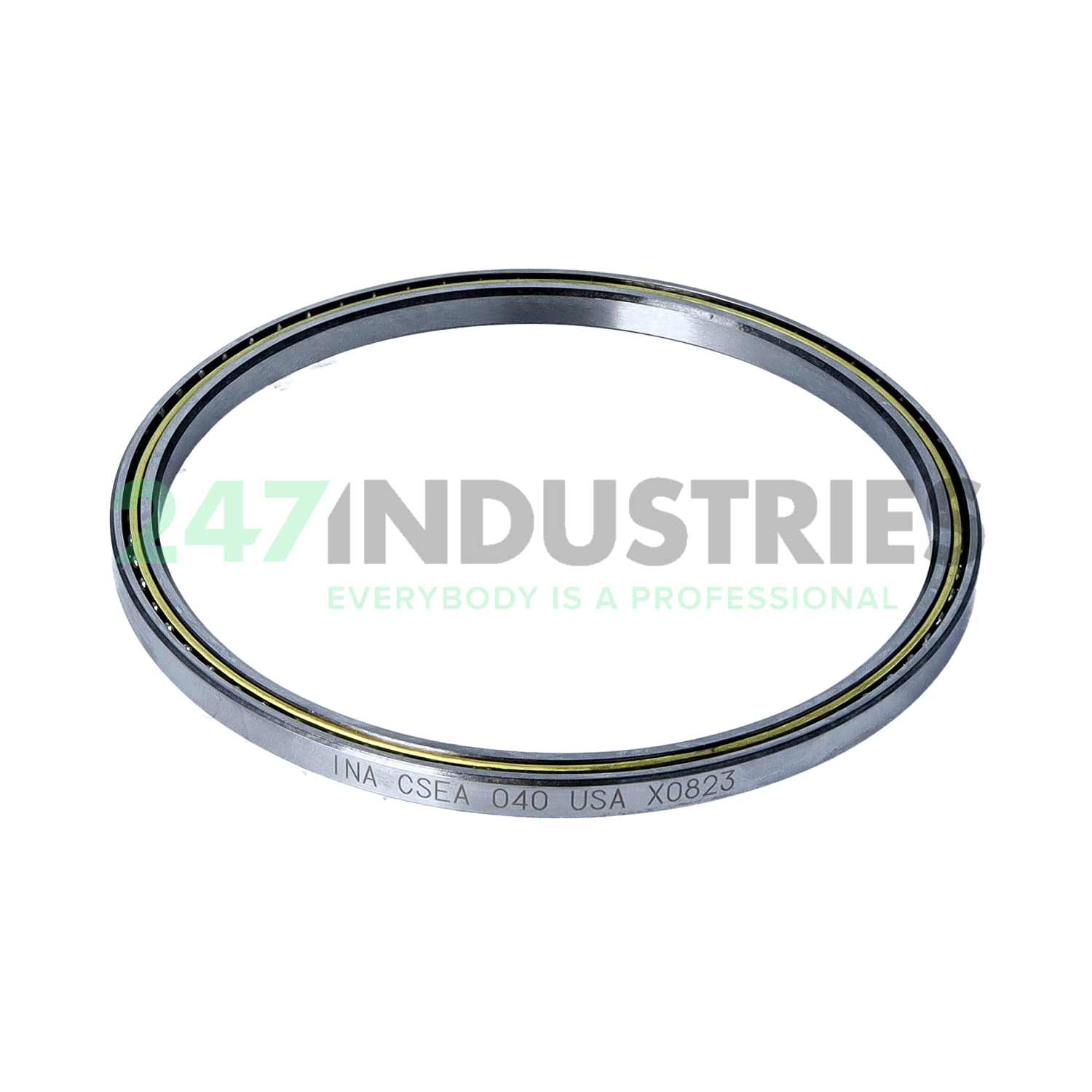

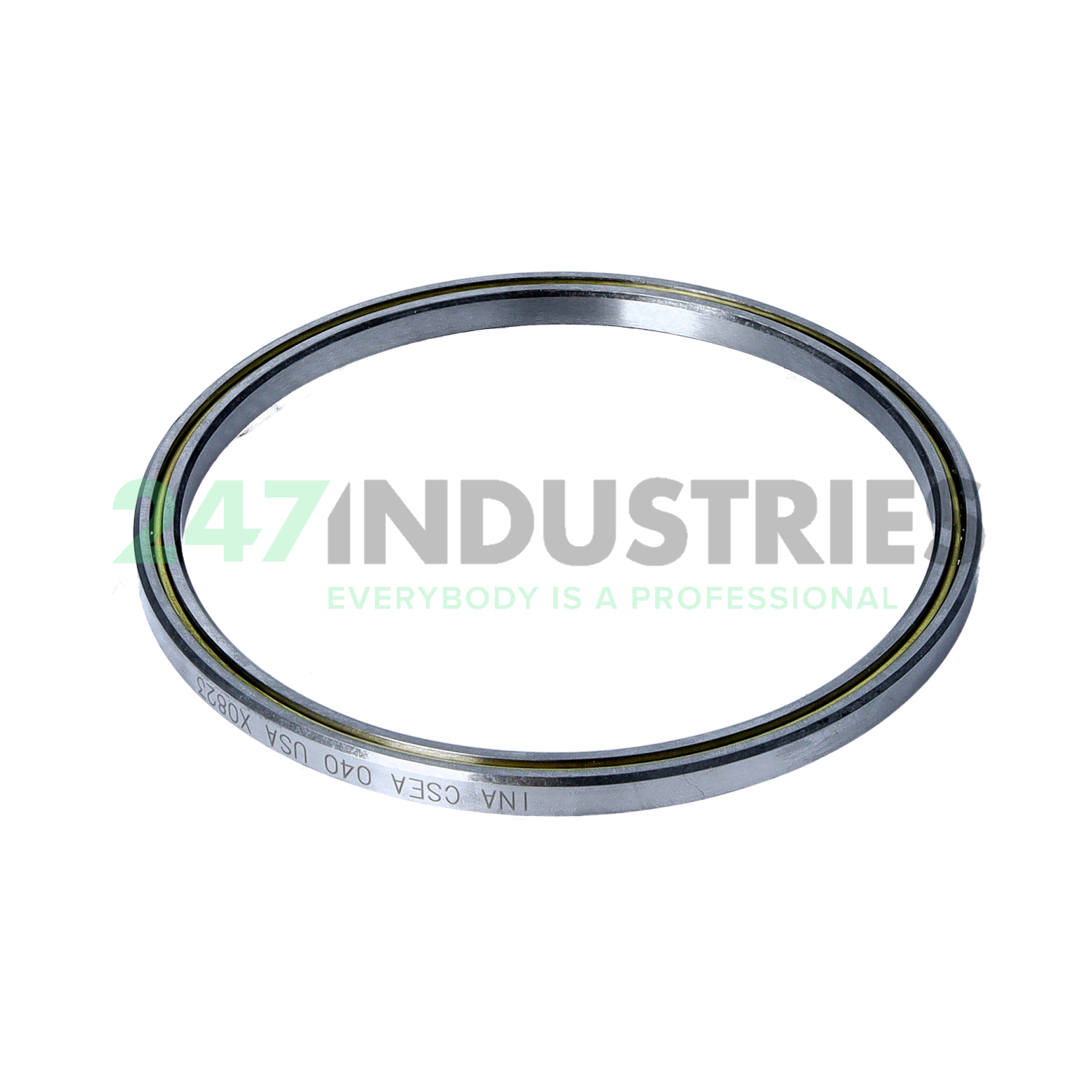

  5. Medias description Thin Section Bearing CSEA, angular contact ball bearing

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
