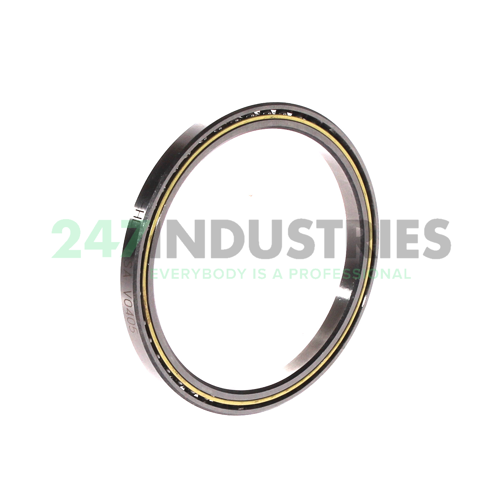

CSEA025-HLE INA

All dimensions

1. Inner (d) MM 63,5
2. Outer (D) MM 76,2
3. Width (B) MM 6,35
4. Inner (d) Inch 2.5
5. Outer (D) Inch 3
6. Width (B) Inch 0.25
7. Width (b) mm 6,35

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number CSEA025-HLE INA
4. Also known as 0039951270000
   6000046
   FPAA208
   KA025ARO
   L15QA208
   NBA6306

5. EAN 4054362037859
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.059

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3800
2. Radial Dynamic Load Rating Cr (N) 3550
3. ECLASS number 23-05-08-03
4. ECLASS2 number 23-05-08-03
5. Medias description Thin Section Bearing CSEA, angular contact ball bearing
