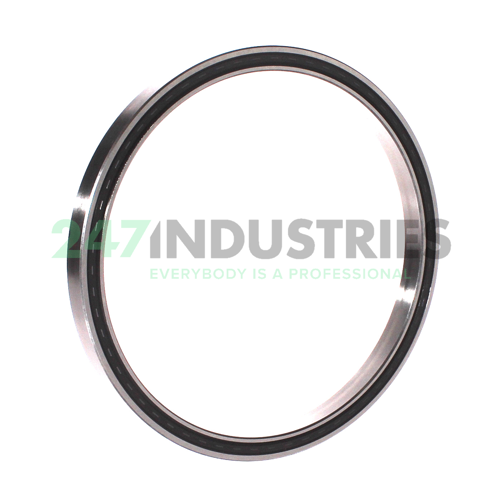

CSCU055-2RS-HLE INA

All dimensions

1. Inner (d) MM 139,7
2. Outer (D) MM 158,75
3. Width (B) MM 12,7
4. Inner (d) Inch 5.5
5. Outer (D) Inch 6.25
6. Width (B) Inch 0.5
7. Width (b) mm 12,7

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 12 pcs on Wed 18 Feb
2. Brand INA
3. Item number CSCU055-2RS-HLE INA
4. Also known as 0031561330000
   6000046
   FPCU508-2RS1
   JU055CPO
   L10SG508.2RSD

5. EAN 4054362037743
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.342

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11200
2. Radial Dynamic Load Rating Cr (N) 8700
3. Limiting speed (n G) 1850
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Thin Section Bearing CSCU..-2RS, deep groove ball bearing
