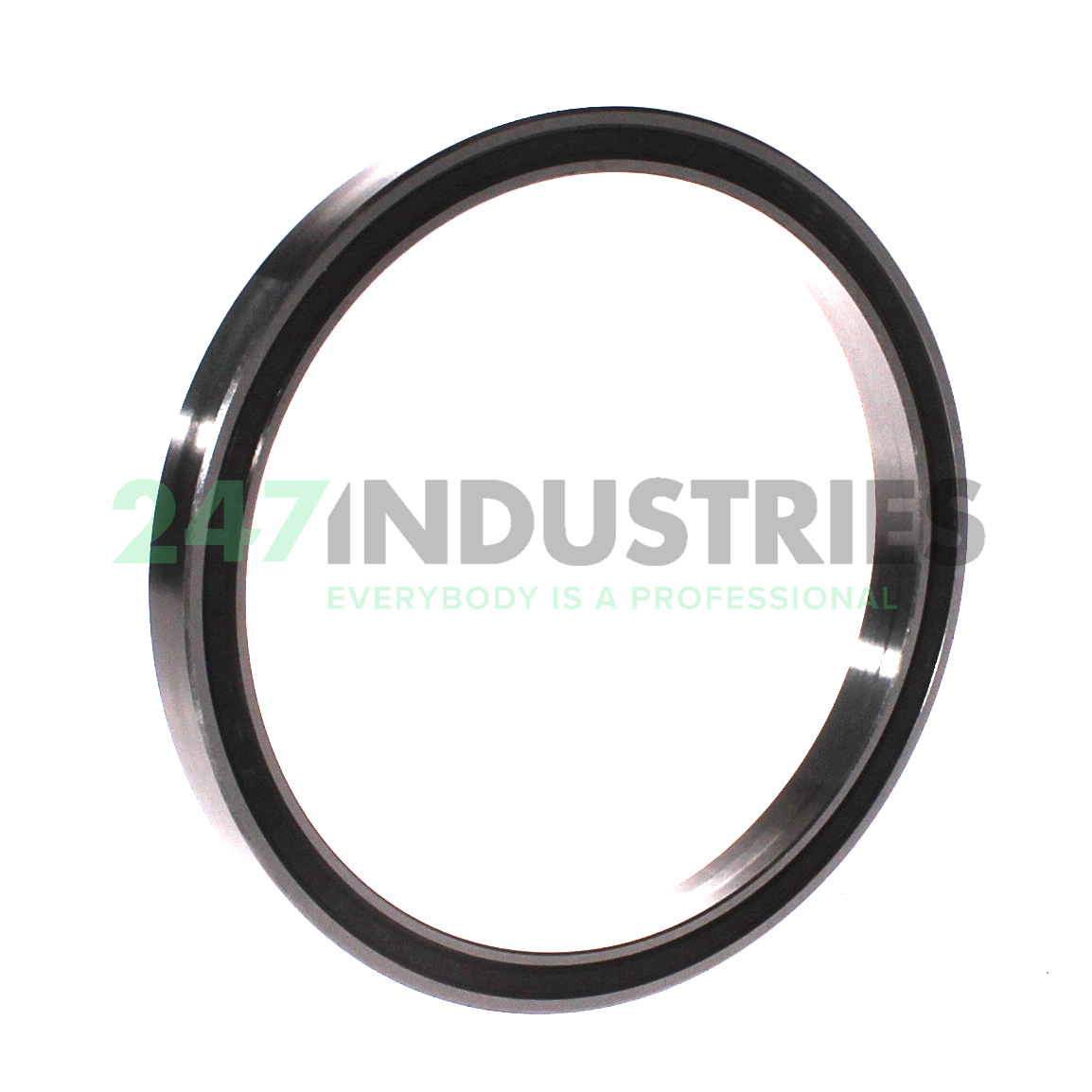

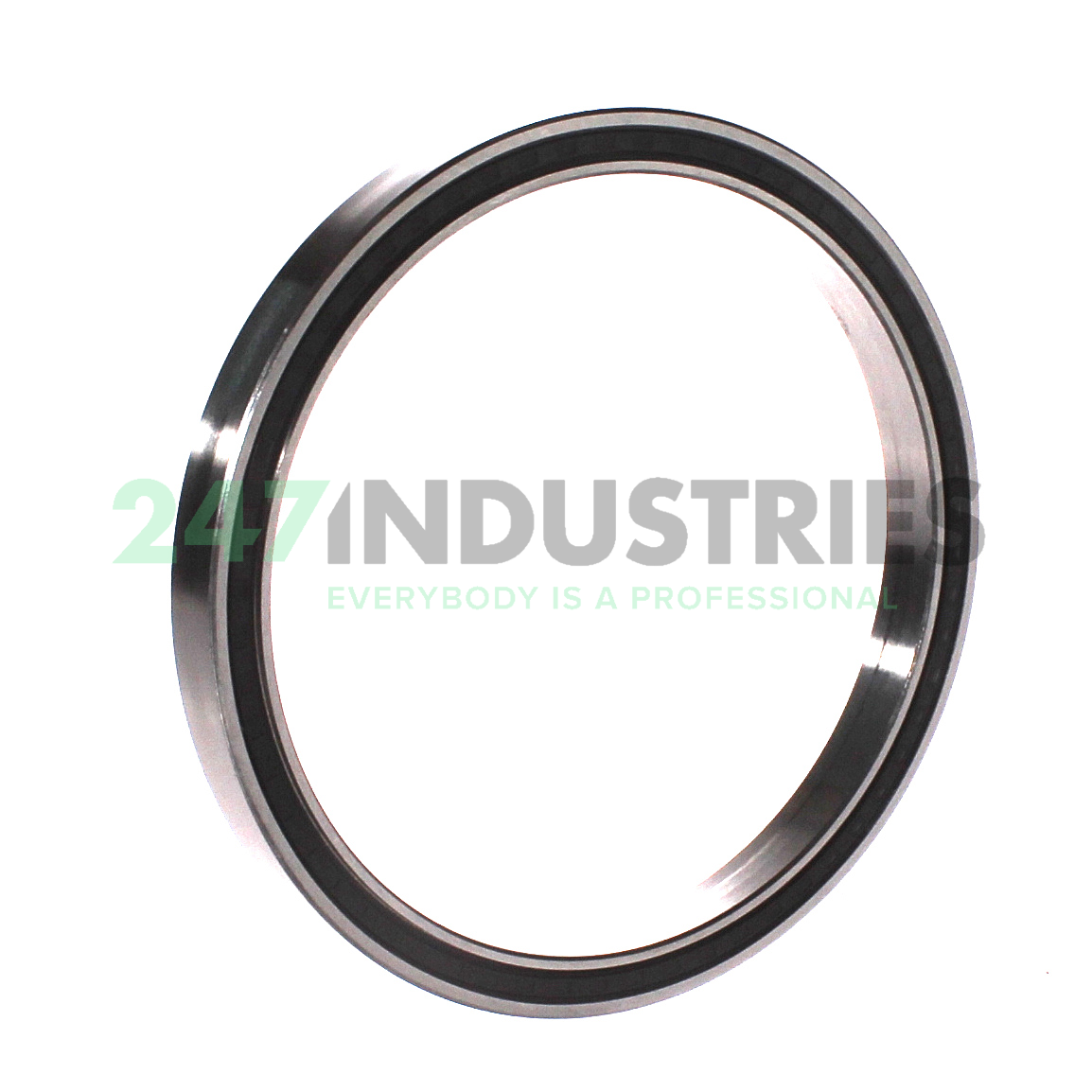

CSCU045-2RS-HLE INA

All dimensions

1. Inner (d) MM 114,30
2. Outer (D) MM 133,35
3. Width (B) MM 12,70
4. Inner (d) Inch 4.5000
5. Outer (D) Inch 5.2500
6. Width (B) Inch 0.5000
7. Width (b) mm 12,70

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number CSCU045-2RS-HLE INA
4. Also known as 0093554560000
   6000046
   FPCU408-2RS1
   JU045CPO
   L10SG408.2RS

5. EAN 4054362037712
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.285

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 9200
2. Radial Dynamic Load Rating Cr (N) 8200
3. Basic static load rating, radial (C 0r) "9200.0000"
4. Limiting speed (n G) "2250.0000"
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Thin Section Bearing CSCU..-2RS, deep groove ball bearing
