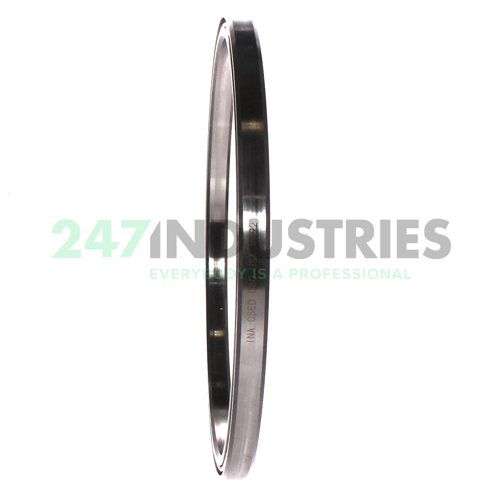

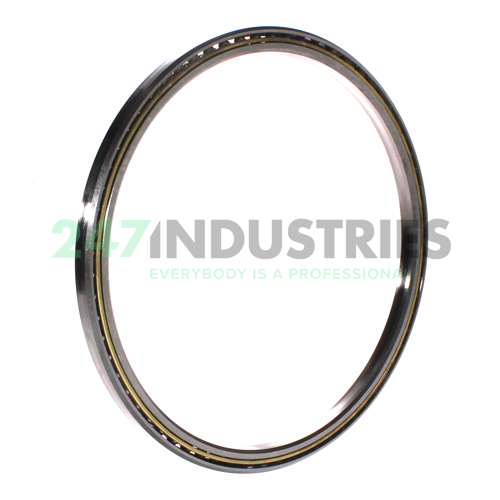

CSCD080-HLE INA

All dimensions

1. Inner (d) MM 203,2
2. Outer (D) MM 228,6
3. Width (B) MM 12,7
4. Inner (d) Inch 8
5. Outer (D) Inch 9
6. Width (B) Inch 0.5
7. Width (b) mm 12,7

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSCD080-HLE INA
4. Also known as 0097575460000
   6000046
   CSCD080
   FPCD800
   KD080CPO
   L10TA800YH

5. EAN 4054362037460
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.681

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23300
2. Radial Dynamic Load Rating Cr (N) 15800
3. Limiting speed (n G) 2550
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Thin Section Bearing CSCD, deep groove ball bearing
