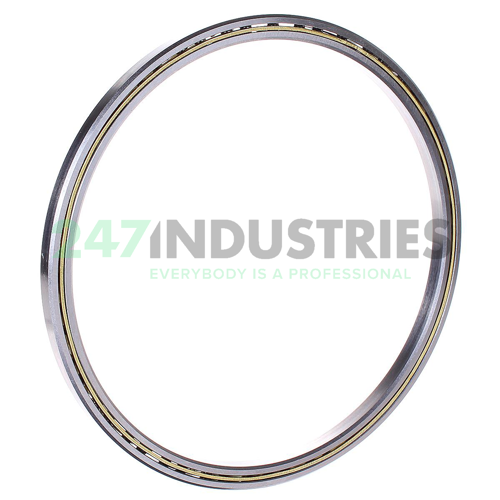

CSCC065-HLE INA

All dimensions

1. Inner (d) MM 165,1
2. Outer (D) MM 184,15
3. Width (B) MM 9,53
4. Inner (d) Inch 6.5
5. Outer (D) Inch 7.25
6. Width (B) Inch 0.375
7. Width (b) mm 9,525

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number CSCC065-HLE INA
4. Also known as 0039266480000
   6000046
   FPCC608
   KC065CP0
   KC065CPO
   L10SA608YH
   NBC16509

5. EAN 4054364141769
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.309

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type Y - Pressed Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13200
2. Radial Dynamic Load Rating Cr (N) 9300
3. Limiting speed (n G) 3250
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Thin Section Bearing CSCC, deep groove ball bearing
