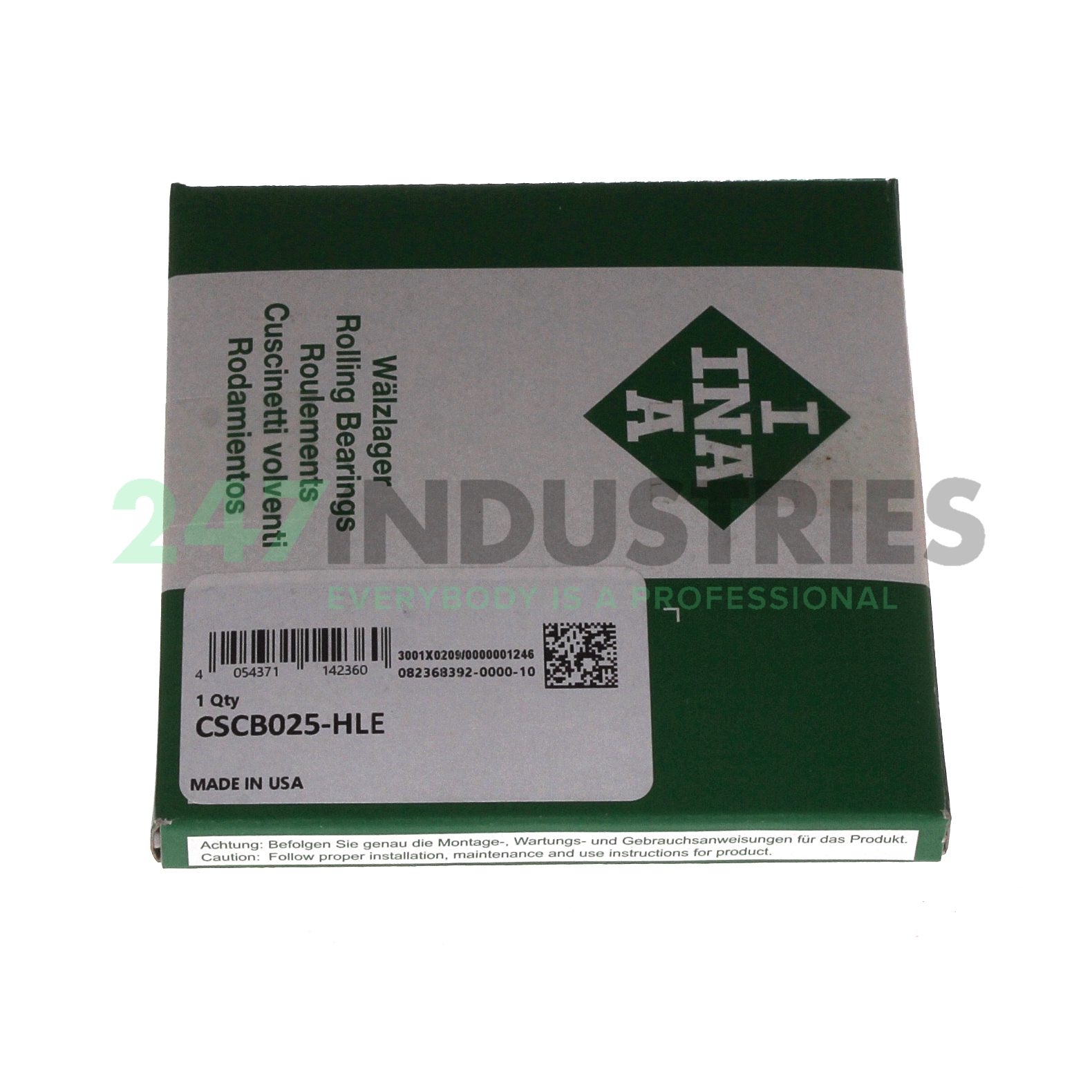

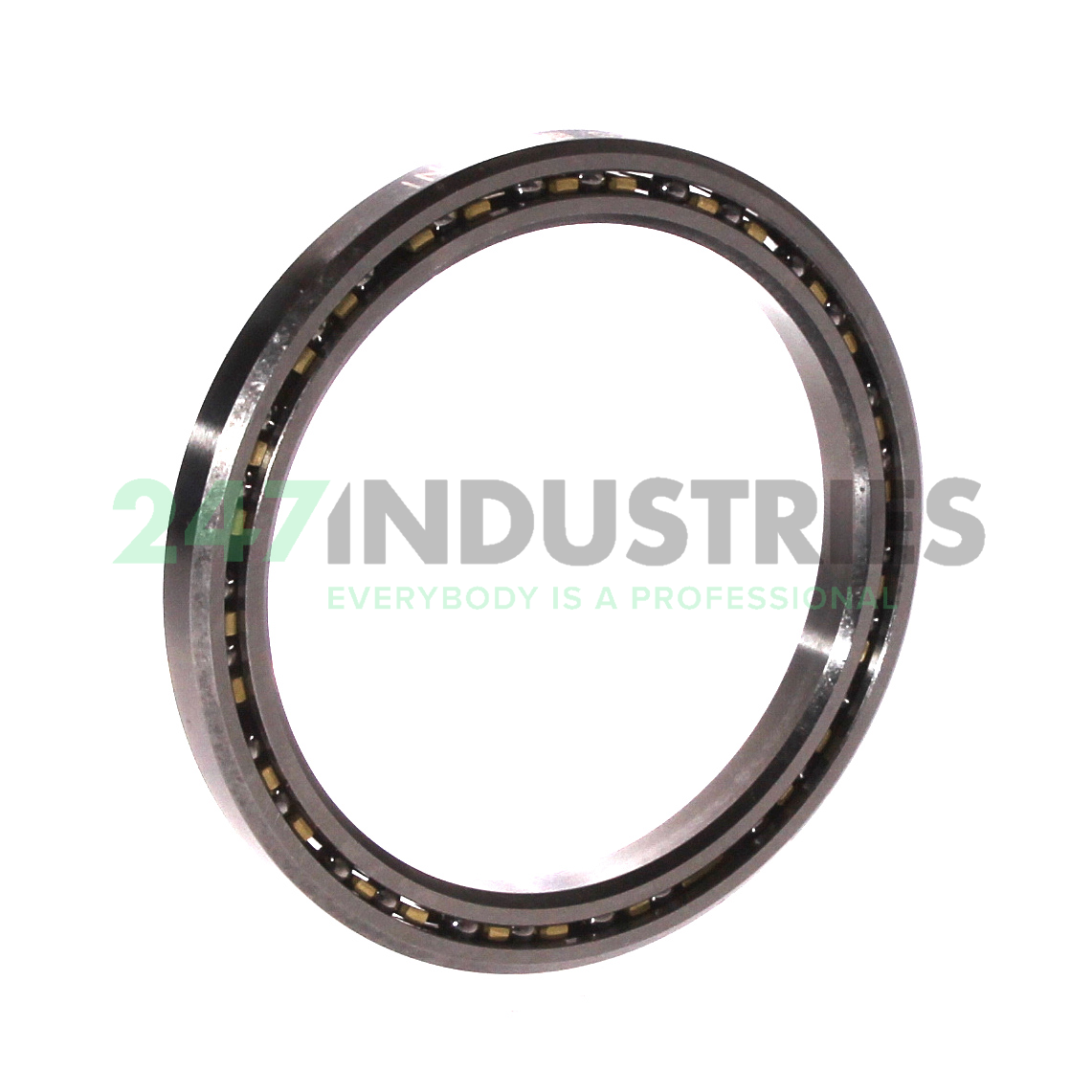

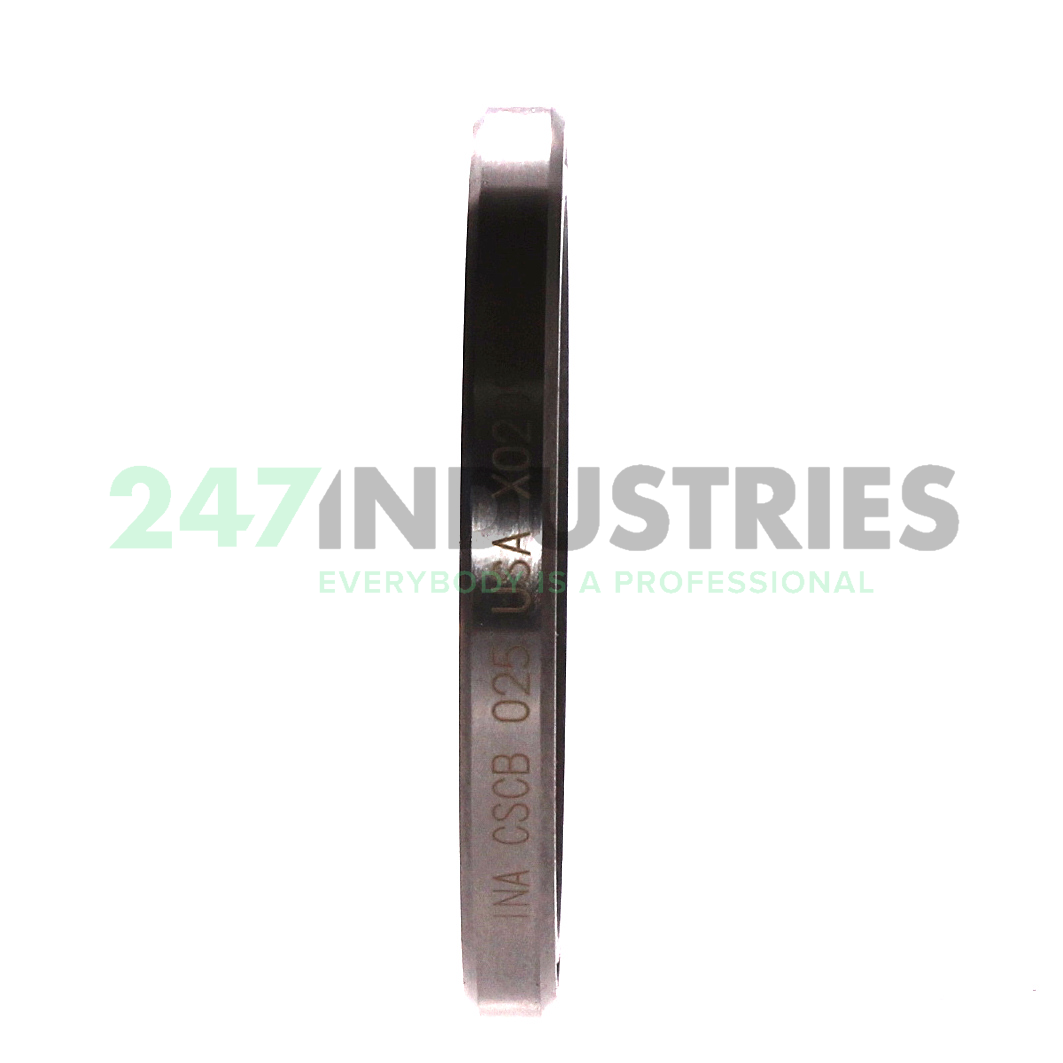

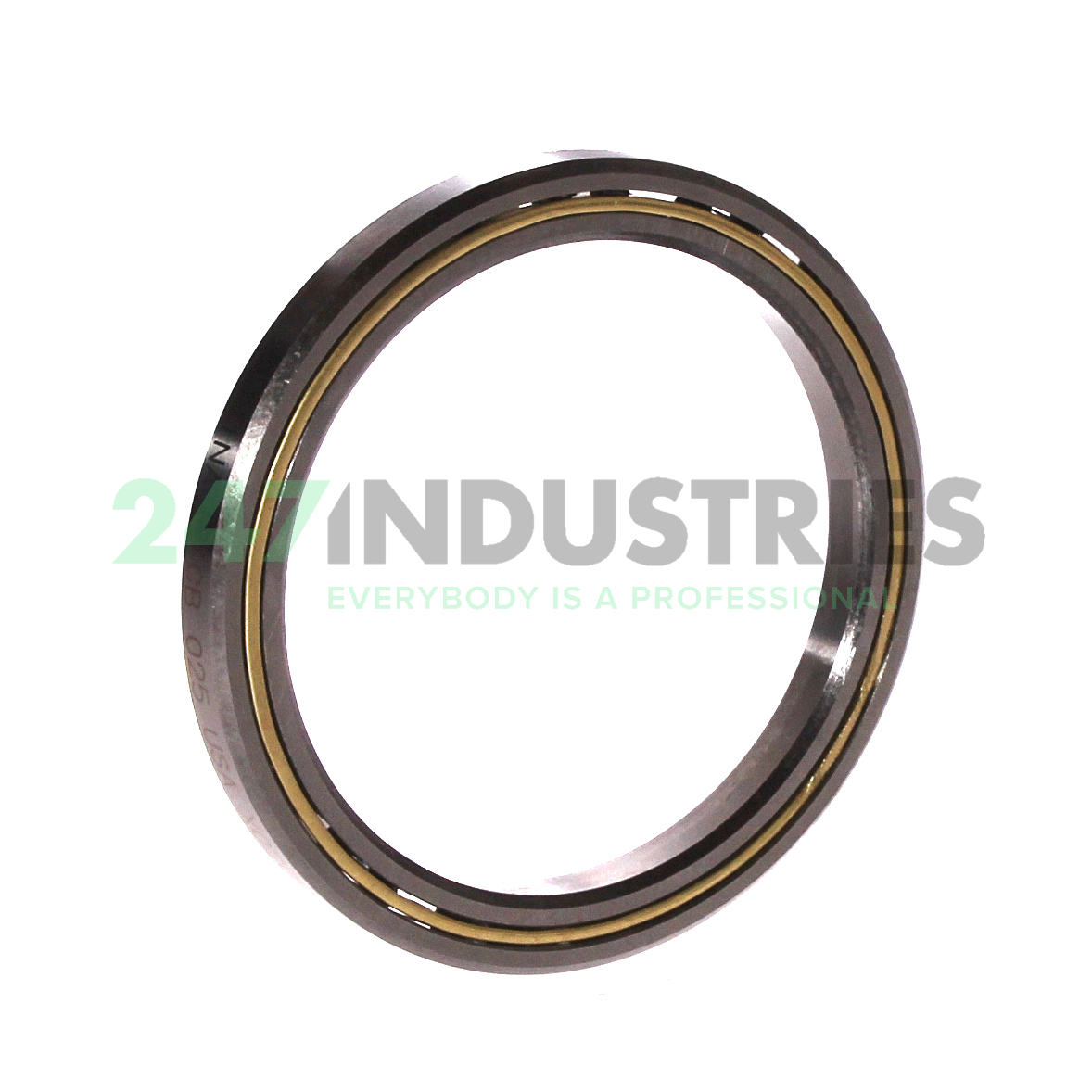

CSCB025-HLE INA

All dimensions

1. Inner (d) MM 63,50
2. Outer (D) MM 79,38
3. Width (B) MM 7,94
4. Inner (d) Inch 2.5000
5. Outer (D) Inch 3.1250
6. Width (B) Inch 0.3125
7. Width (b) mm 7,94

Suffix description

1. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number CSCB025-HLE INA
4. Also known as 0823683920000
   6000046
   CSCB025
   FPCB208
   KB025CP0
   KB025CPO
   NBC6307

5. EAN 4054371142360
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.081

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4400
2. Radial Dynamic Load Rating Cr (N) 5100
3. Basic static load rating, radial (C 0r) "4400.0000"
4. Limiting speed (n G) "8100.0000"
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Thin Section Bearing CSCB, deep groove ball bearing
