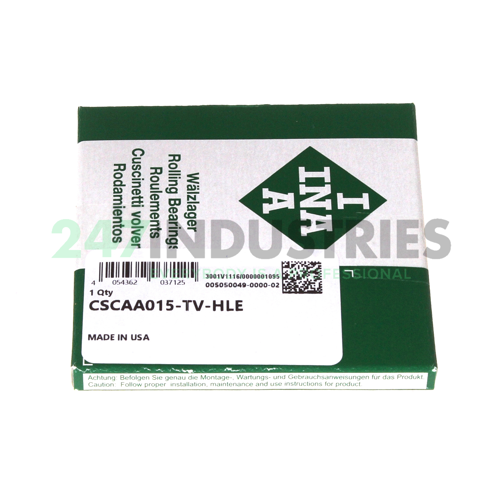

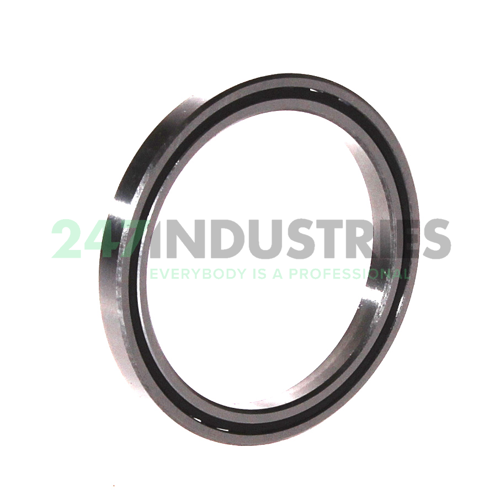

CSCAA015-TV-HLE INA

All dimensions

1. Inner (d) MM 38,1
2. Outer (D) MM 47,625
3. Width (B) MM 4,7625
4. Inner (d) Inch 1.5
5. Outer (D) Inch 1.875
6. Width (B) Inch 0.1875
7. Width (b) mm 4,763

Suffix description

1. TV Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
2. HLE Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number CSCAA015-TV-HLE INA
4. Also known as 0050500490000
   6000046

5. EAN 4054362037125
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.02

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 1540
2. Radial Dynamic Load Rating Cr (N) 2020
3. Limiting speed (n G) 14100
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias description Thin Section Bearing CSCAA..-TV, deep groove ball bearing
