CRY12VUU IKO

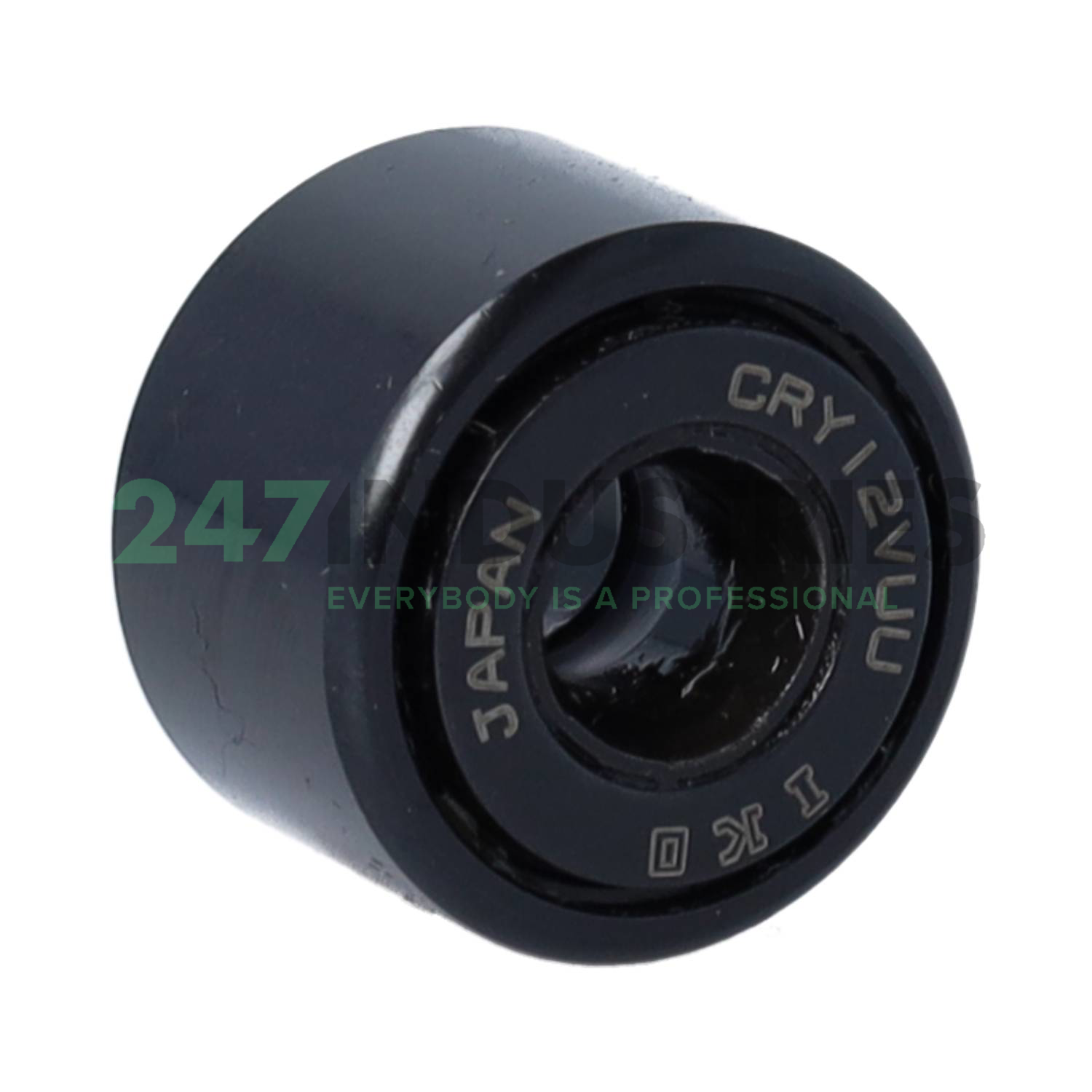

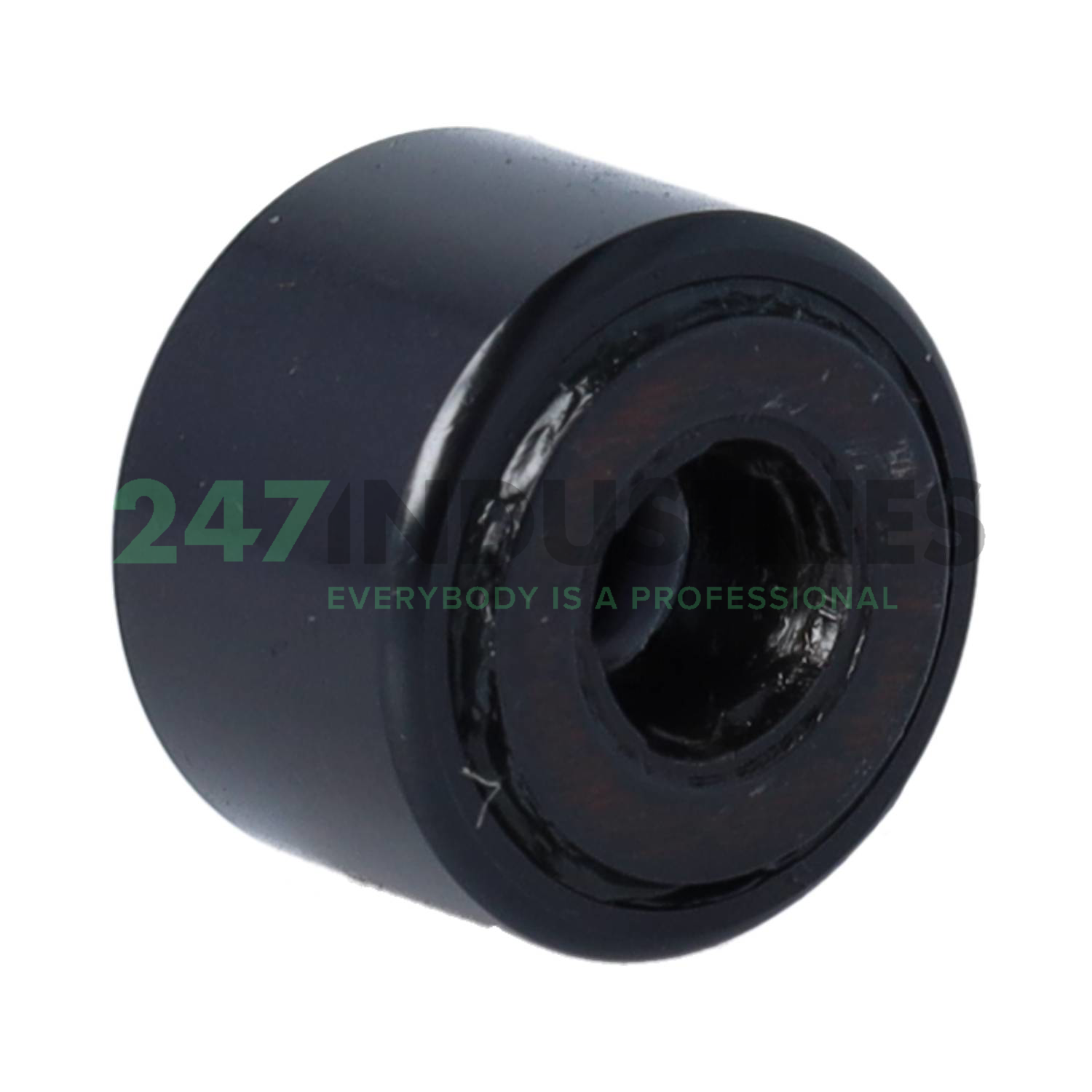

Yoke type full complement track roller with cylindrical rollers

Stock
2 pcs in stock and ready for shipment
Brand IKO
Article number CRY12VUU IKO
Inside diameter 6,35mm
Outside diameter 19,05mm
Width 14,2875mm
Product description

The CRY12VUU IKO is a track roller or support roller with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The CRY12VUU IKO has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this track roller radially highly loadable. Full complement track rollers are also more shock-resistant than track rollers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of track rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Help with this product

Similar to: CRY12VUU IKO

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 6,35
  2. Outer (D) MM 19,05
  3. Width (B) MM 14,2875
  4. Inner (d) Inch 0.25
  5. Outer (D) Inch 0.75
  6. Width (B) Inch 0.5625

Suffix description

  1. V Bearing Without Cage, With Full Complement Of Rolling Elements
  2. UU Rubber Seals At Each Side Of The Bearing

Technical details

  1. Availability 2 pcs
  2. Brand IKO
  3. Item number CRY12VUU IKO
  4. Also known as CYR3/4S
  5. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.027

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Running Surface Cylindrical
