CRB30/83-XL INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 83,6
3. Width (B) MM 40,7
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 3.2913
6. Width (B) Inch 1.6024
7. Locking collar total width (B 1) mm 35,8
8. Width total (B 2) mm 40,7

Suffix description

1. XL X-Life

Technical details

1. Availability 12 pcs
2. Brand INA
3. Item number CRB30/83-XL INA
4. Also known as 0008335760000
   CRB30/83

5. EAN 4012802790290
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.41

Product Properties

1. Seal 2L - LS-seal at Both Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

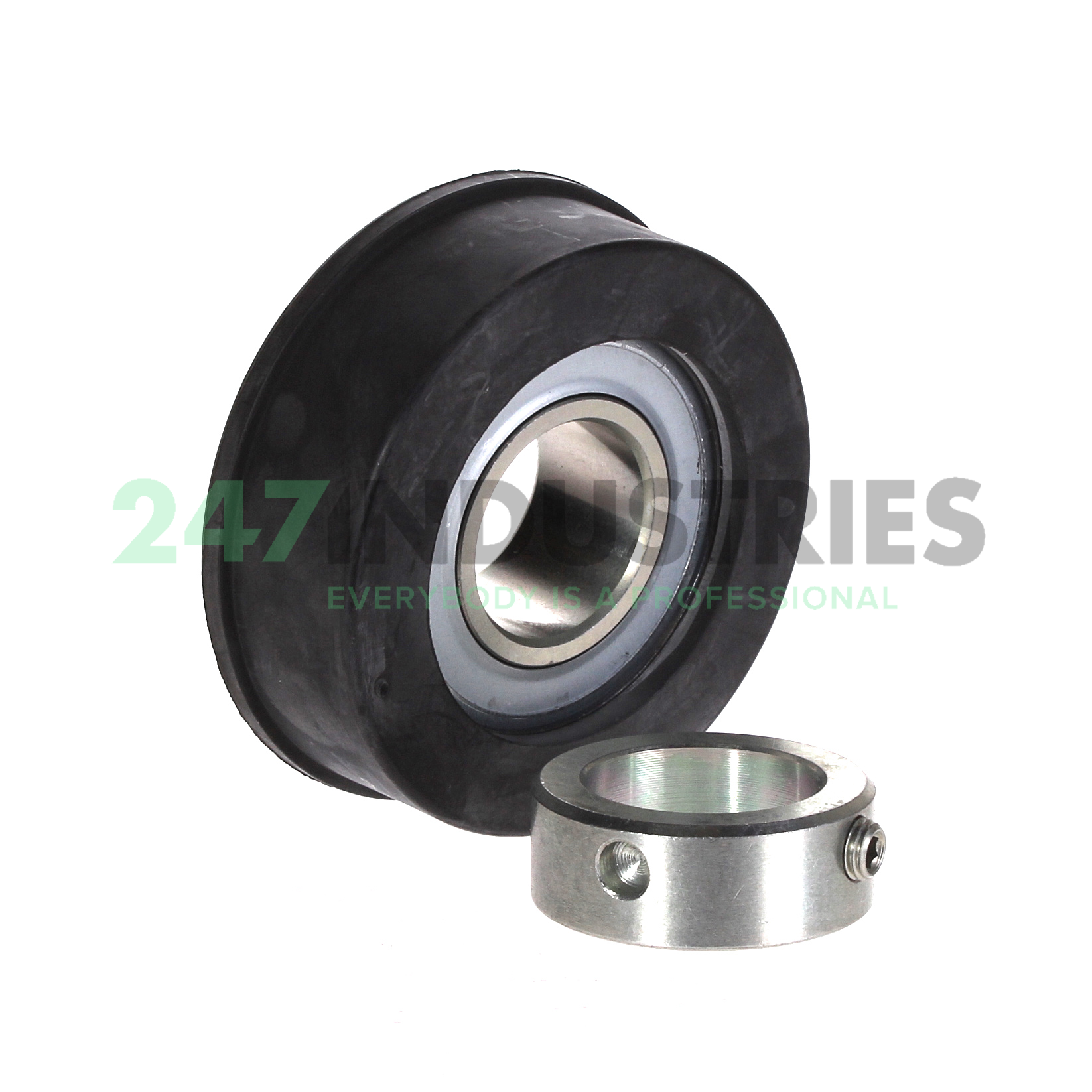

5. Medias description Radial insert ball bearings CRB, with rubber interliner, location by eccentric locking collar, P seals on both sides
