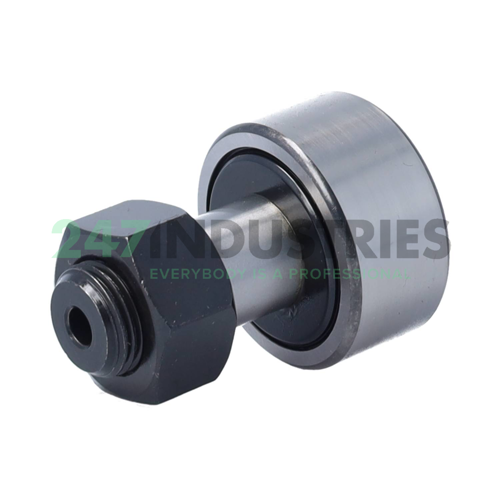

CF18UUA THK

All dimensions

1. Inner (d) MM 18
2. Outer (D) MM 40
3. Width (B) MM 20
4. Inner (d) Inch 0.7087
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.7874

Suffix description

1. UU Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃. If Letter R Is In The Suffix, Then The Cam Follower Is With Crowned Outer Ring, Otherwise It's A Cylindrical Running Surface (X)
2. A Stud With A Hexagon Socket

Technical details

1. Availability 4 pcs
2. Brand THK
3. Item number CF18UUA THK
4. Category Cam Follower

Weight and Dimensions

1. Weight (kg) 0.25

Product Properties

1. Seal 2L - LS-seal at Both Sides
2. Excenterring Other Mounting Method
3. Running Surface Cylindrical
