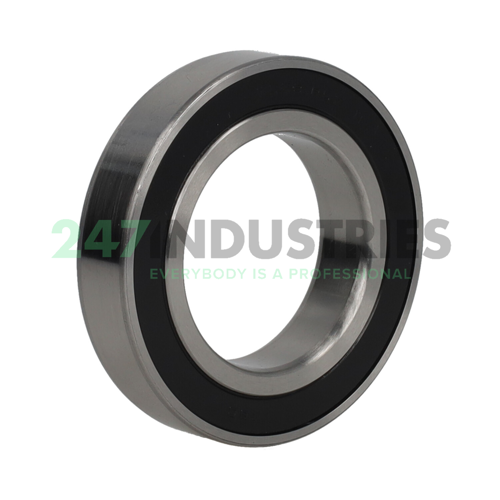

CB7009C.T.2RSZ.P4A.UL IBC Bearings

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 75
3. Width (B) MM 16
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 0.6299

Suffix description

1. C 15° Contact Angle
2. T Cage Of Machined Phenolic Resin, Located On Rolling Elements
3. 2RSZ Non Contact Seal At Both Sides Of The Bearing
4. P4A Bearing With Extreme High Running Accuracy (Abec9) And Form Tolerance (Abec7)
5. UL Single Bearing, Universal, Light Preload

Technical details

1. Availability 2 pcs
2. Brand IBC Bearings
3. Item number CB7009C.T.2RSZ.P4A.UL IBC Bearings
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.265

Product Properties

1. Seal 2RU - Two Seals / Non Contact Type
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
