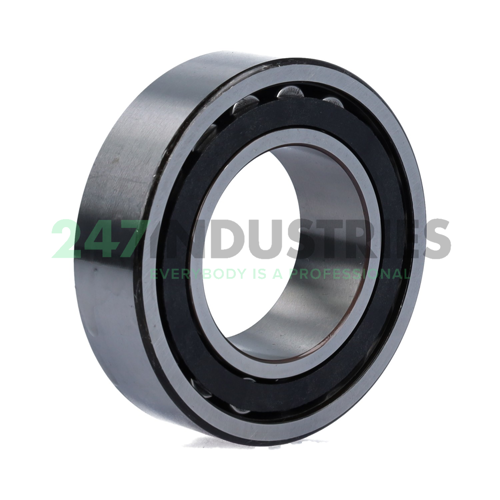

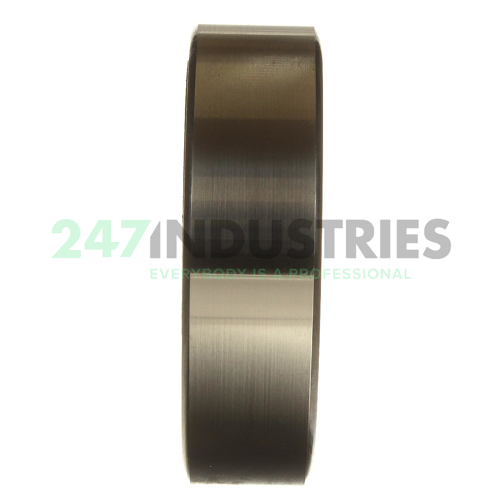

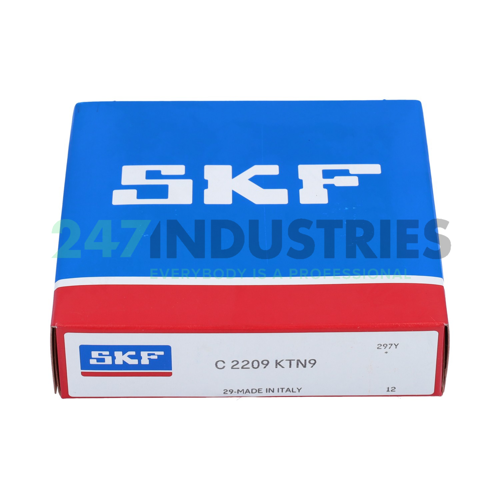

C2209KTN9 SKF

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 23
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.9055

Suffix description

1. K Tapered Bore, Taper 1:12
2. TN9 Injection Moulded Window-Type Cage Of Glass Fibre Reinforced Polyamide 4,6, Roller Centered

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number C2209KTN9 SKF
4. EAN 7316571139616
5. Category CARB™ Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.584

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Cage Type P - Plastic Molded Cage
3. Radial Internal Play Cn Normal Internal Play
