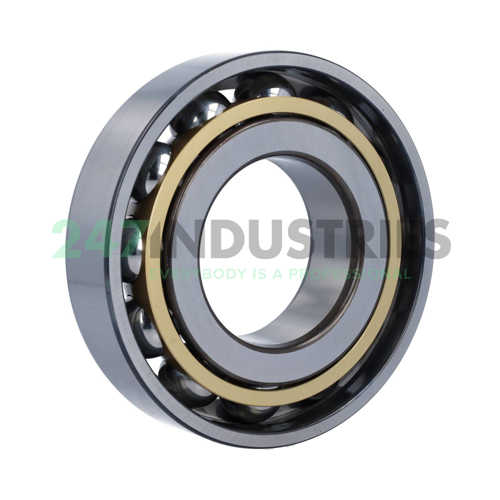

BY-7316BECBM/S1 SKF

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 170
3. Width (B) MM 39
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 6.6929
6. Width (B) Inch 1.5354

Suffix description

1. BE Single Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
2. CB Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Normal Axial Internal Clearance Before Mounting
3. M Machined Window-Type Brass Cage, Ball Centered, Different Designs Are Identified By A Figure, e.g. M1
4. S1 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F)

Technical details

1. Availability 3 pcs
2. Brand SKF
3. Item number BY-7316BECBM/S1 SKF
4. Also known as 7316BECBM/S1

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 4.17

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 40 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
