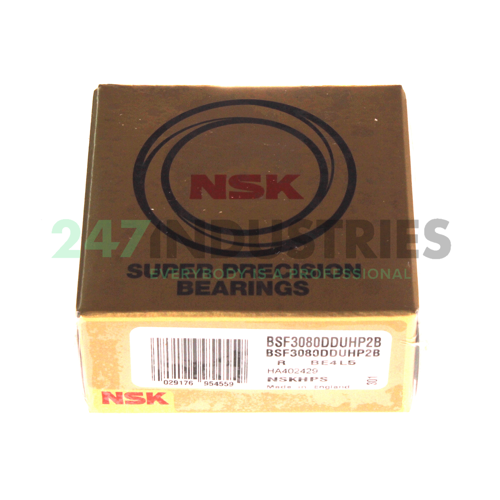

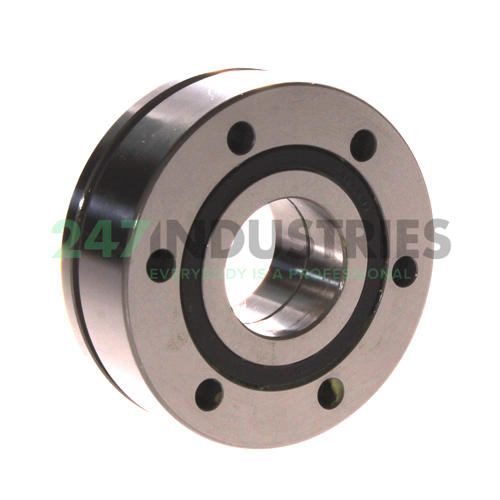

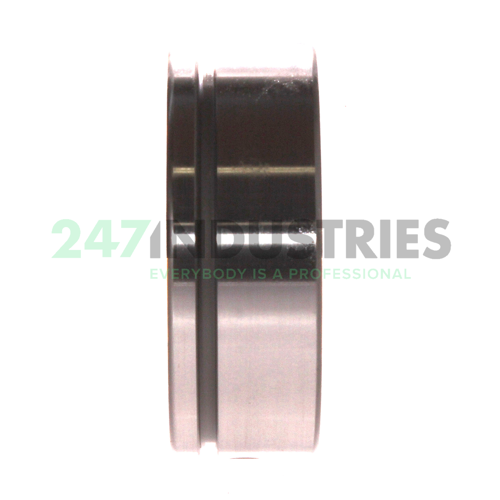

BSF3080DDUHP2B BE4L5 NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 80
3. Width (B) MM 28
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.1024

Suffix description

1. DDU Seal Type
2. H Heavy Preload
3. P2B ISO Tolerance Class 2
4. BE4 Lubricant, Operating Temperature -40 ~ 150°C
5. L Grease Packed Less Than Standard
6. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 12 pcs
2. Brand NSK
3. Item number BSF3080DDUHP2B BE4L5 NSK
4. Also known as BSF3080DDUHP2B

5. EAN 00029176954559
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.79

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Precision P2
