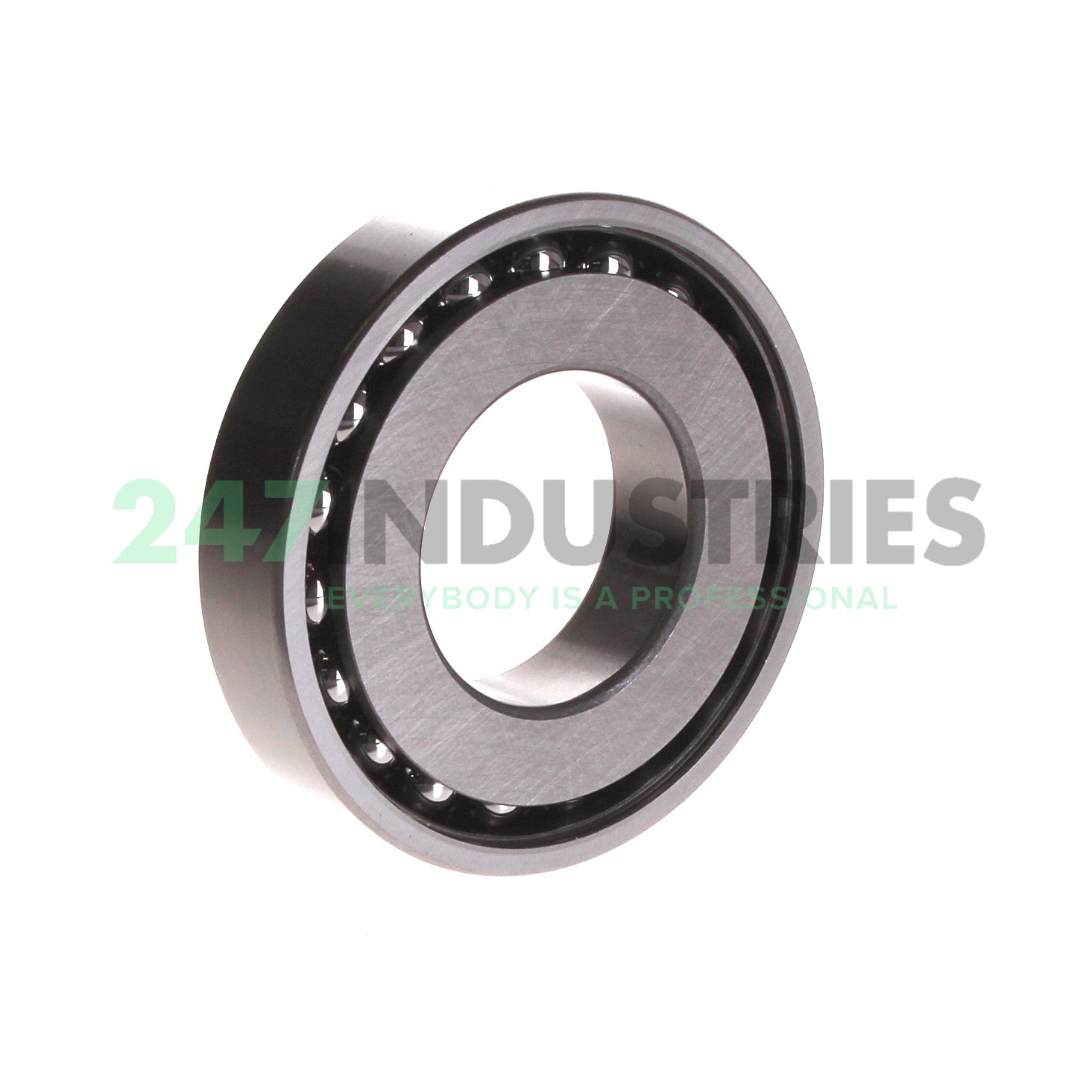

BSB3572-SU FAG

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 15
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.5906

Suffix description

1. SU Universal Bearing; Single Bearings Can Be Used In Sets In Any Combination Required

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number BSB3572-SU FAG
4. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.284

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 89000
2. Axial Dynamic Load Rating Ca (N) 37000
3. ECLASS number 23-05-10-02
4. ECLASS2 number 23-05-10-02
5. Medias description Axial angular contact ball bearing BSB..-SU, single direction, no screw mounting

Downloads and links

1. Link to Manufacturer Link to Manufacturer
