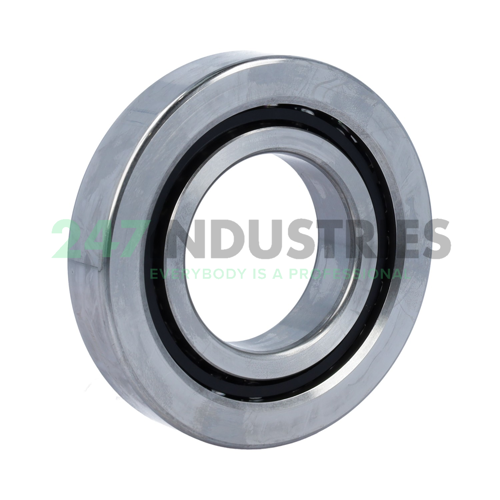

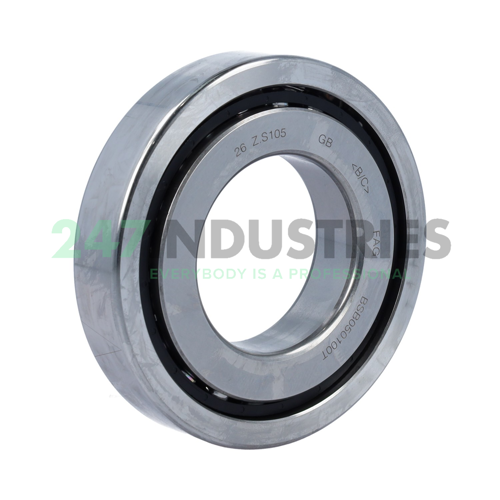

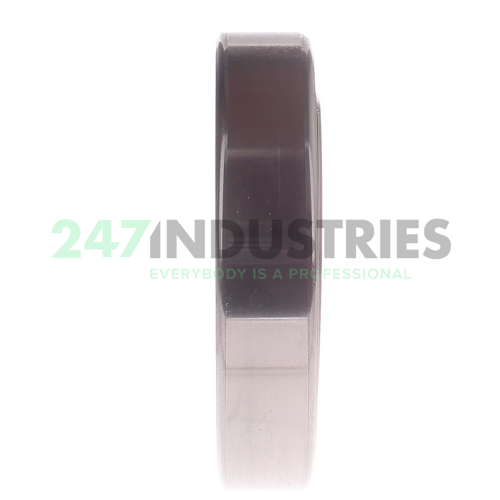

BSB050100-T FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 100
3. Width (B) MM 20
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. T Polyamide Cage, Guided By Balls

Technical details

1. Availability 9 pcs
2. Brand FAG
3. Item number BSB050100-T FAG
4. Also known as 0384932090000
   50TAC100DB
   BSD50100DB
   MM50BS100DUH

5. EAN 4026677018922
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.699

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 172000
2. Axial Dynamic Load Rating Ca (N) 62000
3. Limiting speed for grease lubrication (n G Grease) 4000
4. Thermally safe operating speed (n ϑ) 2700
5. ECLASS number 23-05-10-02
6. ECLASS2 number 23-05-10-02

Downloads and links

1. Link to manufacturer Link to manufacturer
