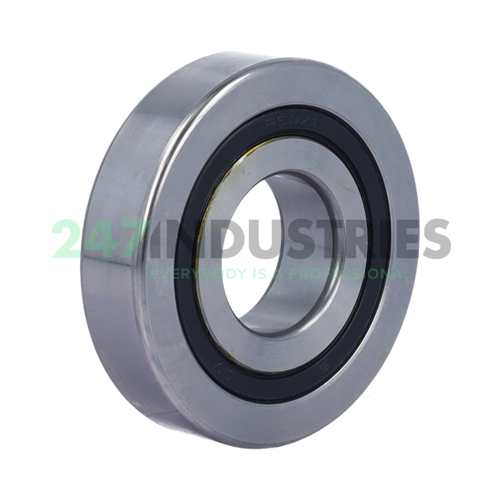

BSB025062-2RS-T FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.5906

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. T Polyamide Cage, Guided By Balls

Technical details

1. Availability 10 pcs on Tue 7 Apr
2. Brand FAG
3. Item number BSB025062-2RS-T FAG
4. Also known as 0386553900000
   BSD2562-2RS

5. EAN 4026677849526
6. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.232

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision Standard Precision

Data from Schaeffler (medias)

1. ECLASS number 23-05-10-02
2. ECLASS2 number 23-05-10-02

Downloads and links

1. Link to manufacturer Link to manufacturer
