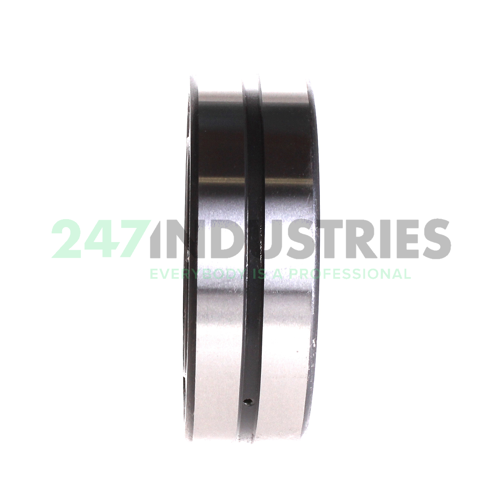

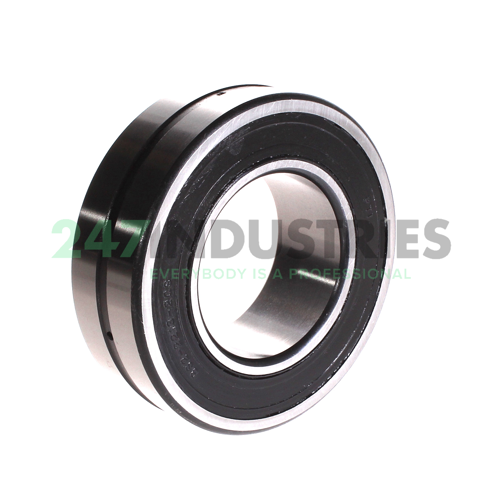

BS2-2213-2CS PTI

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 120
3. Width (B) MM 38
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.4961

Suffix description

1. 2CS Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing. Annular Groove And Three Lubrication Holes In The Outer Ring Covered With A Polymer Band. Lubricated With An Extreme Pressure Bearing Grease According To Temperature Range -20 ~ 110℃, Grease Fill 25% To 35%

Technical details

1. Availability 0 pcs
2. Brand PTI
3. Item number BS2-2213-2CS PTI
4. Also known as BS2-2213-2CS/VT143
   BS2-2213-2RS
   BS2-2213-2RS/VT143
   BS2-2213C-2CS
   WS22213-E1-2RSR
   WS22213-E1-XL-2RSR

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.6

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal 2RS - Rubber Seal on Two Sides
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
