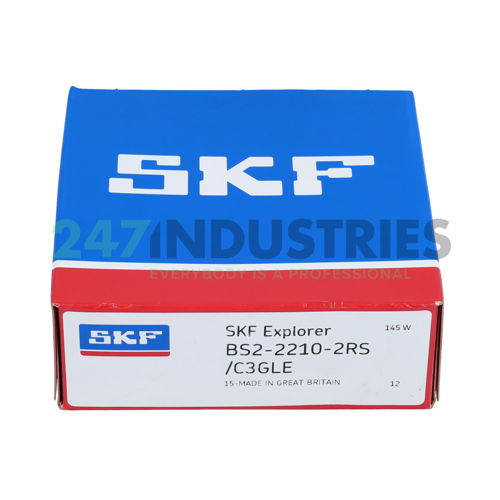

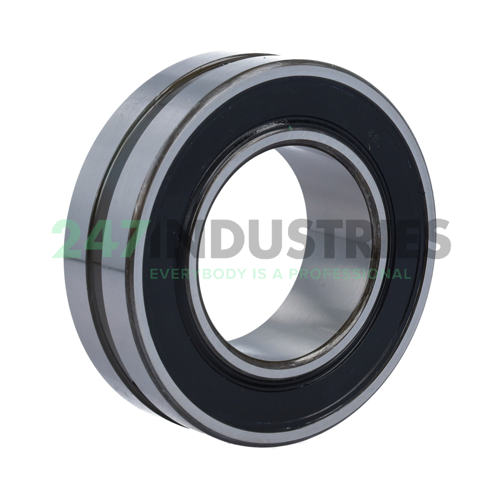

BS2-2210-2RS/C3GLE SKF

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 28
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.1024

Suffix description

1. 2RS Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
2. C3 Internal Clearance Larger Than Normal
3. GLE Filled To 25-35% With SKF LGWM2 Grease, Operating Temperature Range, -40 ~ 110°C (–40 ~ 230°F)

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number BS2-2210-2RS/C3GLE SKF
4. Also known as WS22210-E1-XL-2RSR-C3

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.7

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal 2RS - Rubber Seal on Two Sides
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
