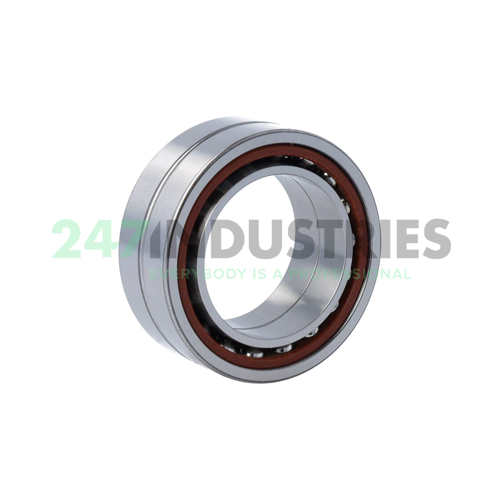

BNT908DTUP NTN

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 24
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.9449

Suffix description

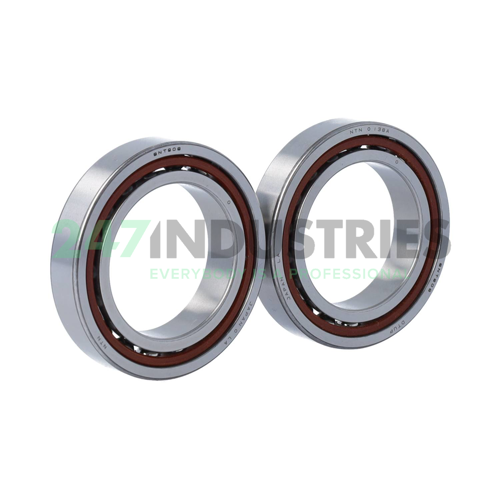

1. DT Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Tandem Arrangement
2. UP Ultra Precision

Technical details

1. Availability 5 pcs
2. Brand NTN
3. Item number BNT908DTUP NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.22

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision UP (Ultra Precision)
4. Contact Angle 15 degrees
5. Pairing DT - Tandem Arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
