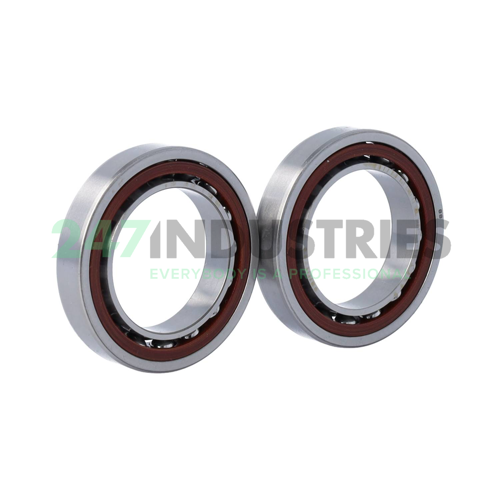

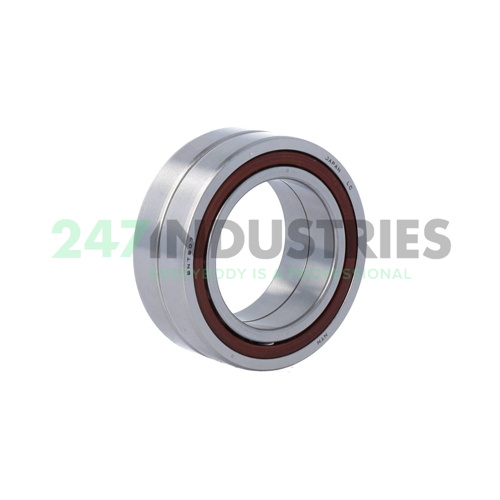

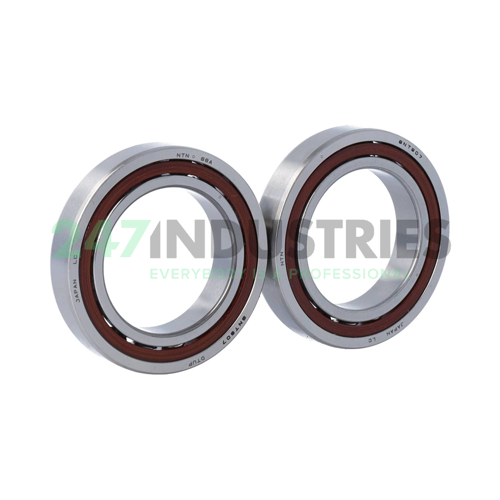

BNT907DTUPU44 NTN

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 55
3. Width (B) MM 20
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.7874

Suffix description

1. DT Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Tandem Arrangement
2. UP Ultra Precision
3. U44 Unknown

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number BNT907DTUPU44 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.146

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision UP (Ultra Precision)
4. Contact Angle 15 degrees
5. Pairing DT - Tandem Arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
