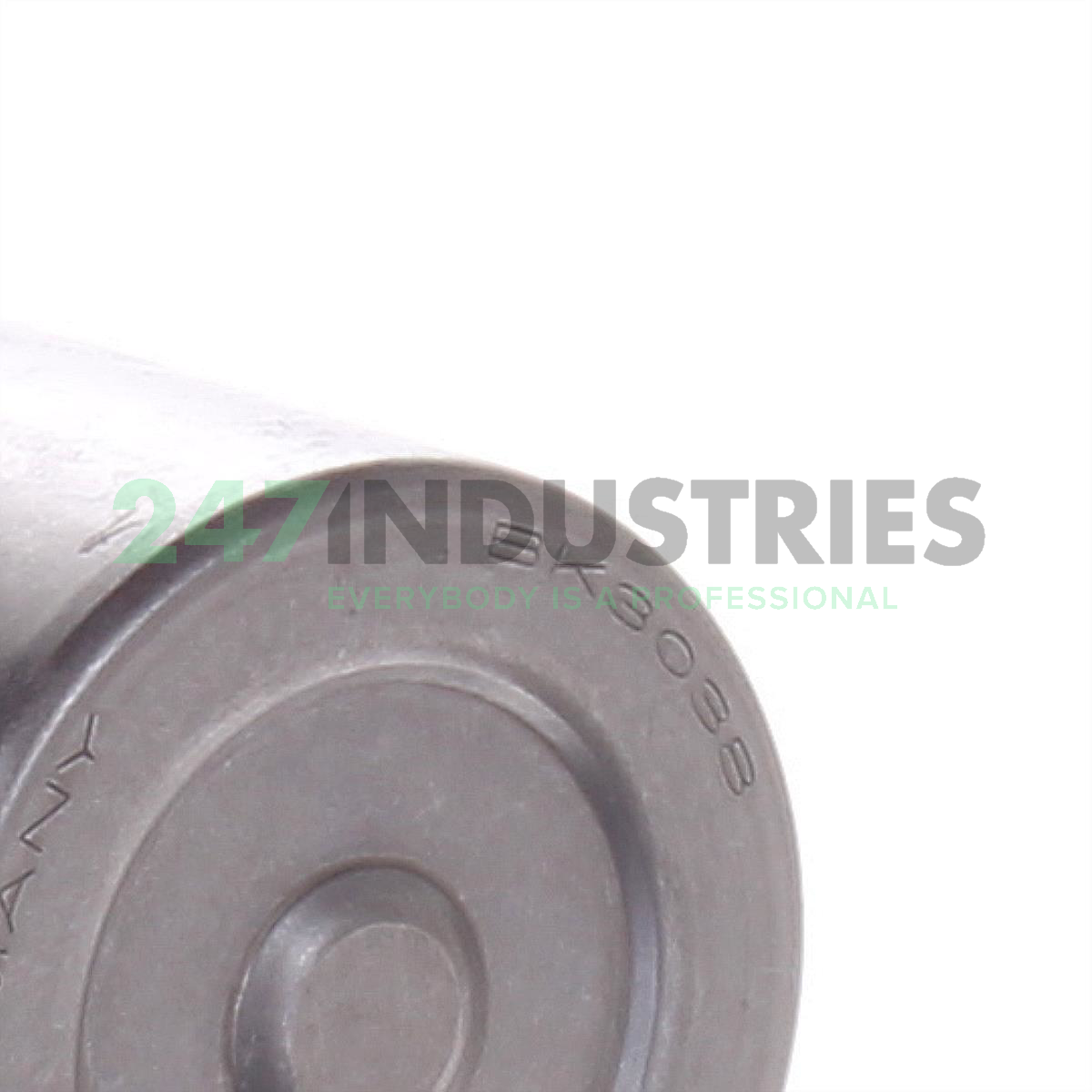

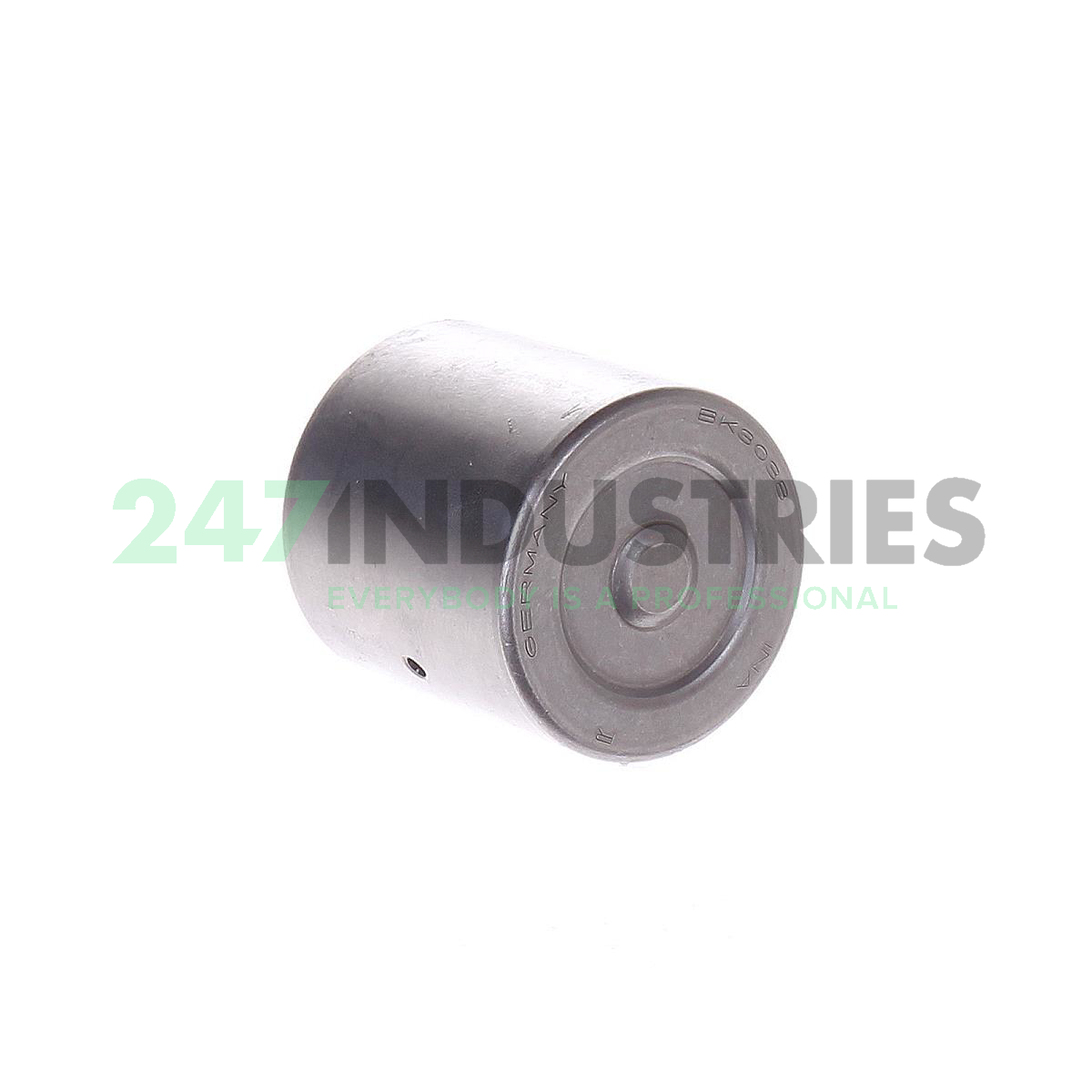

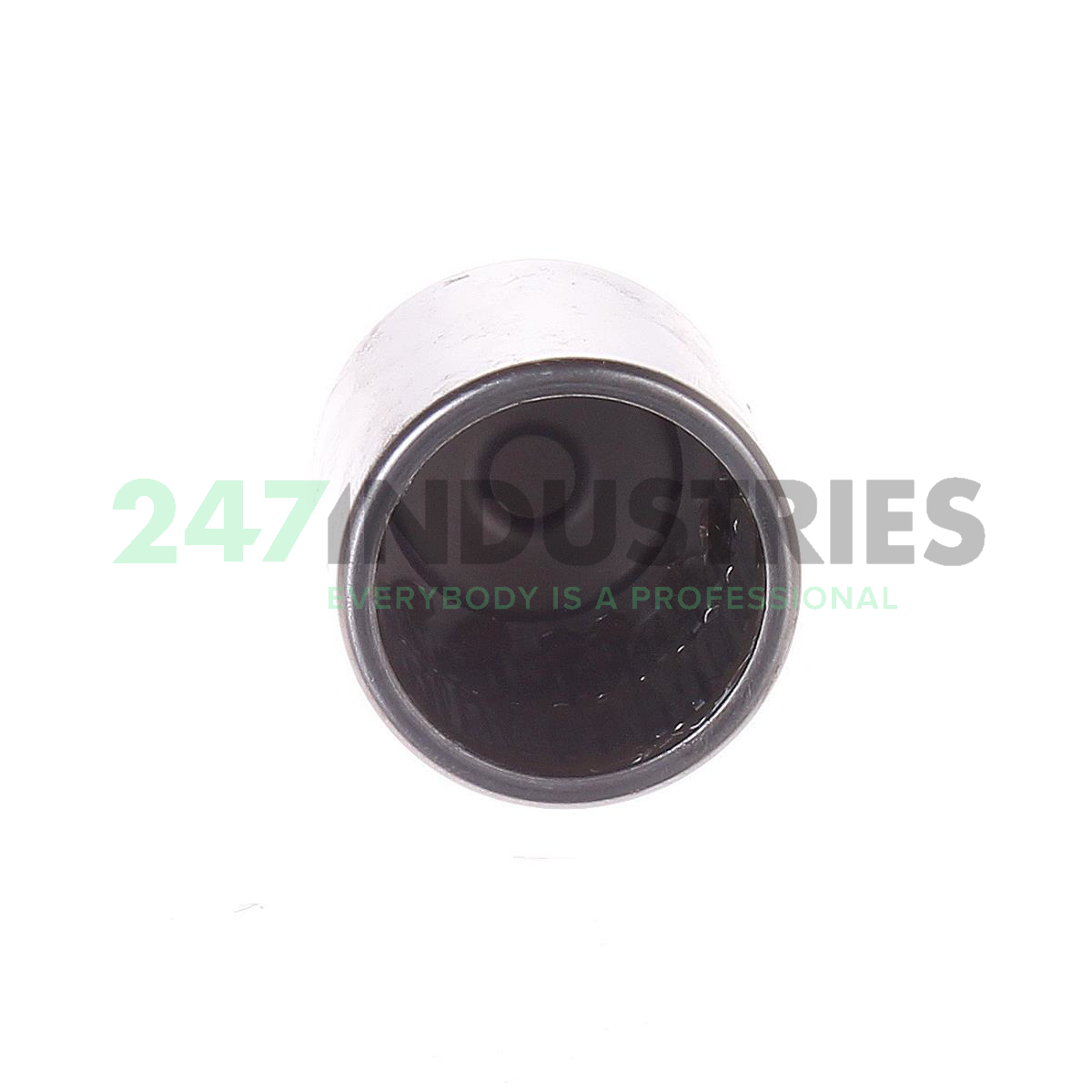

BK3038-ZW-L271 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 37
3. Width (B) MM 38
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.4567
6. Width (B) Inch 1.4961
7. Under roller diameter (F w) mm 30

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. L271 Anti Wear Protection Grease

Technical details

1. Availability 47 pcs
2. Brand INA
3. Item number BK3038-ZW-L271 INA
4. Also known as 0001954210968

5. EAN 4054362033554
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.083

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 79000
2. Radial Dynamic Load Rating Cr (N) 37500
3. Limiting speed (n G) 8600
4. Reference speed (n ϑr) 6200
5. ECLASS number 23-05-09-06
6. ECLASS2 number 23-05-09-06
7. Medias description Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
