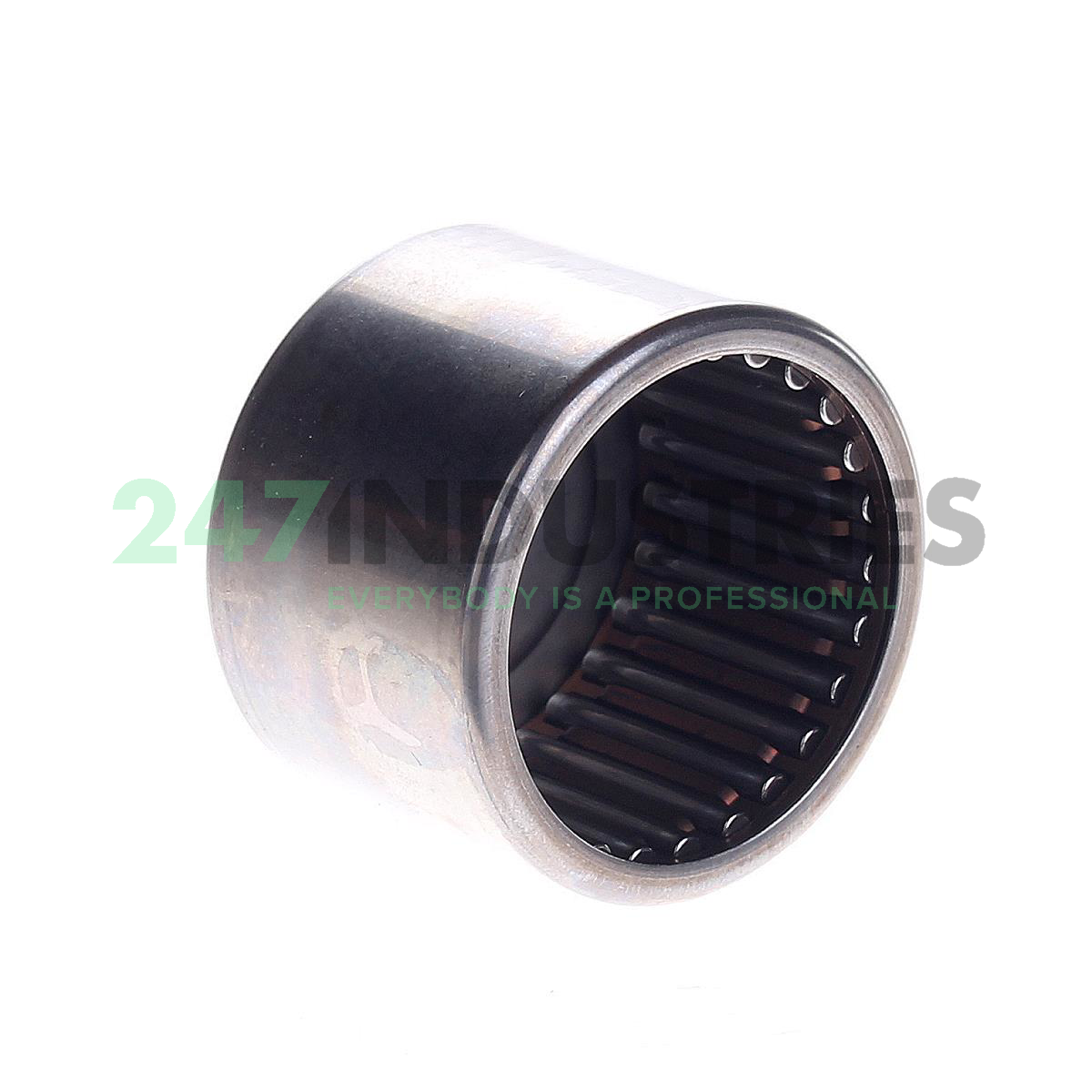

BK3026 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 37
3. Width (B) MM 26
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.4567
6. Width (B) Inch 1.0236
7. Under roller diameter (F w) mm 30

Technical details

1. Availability 156 pcs
2. Brand INA
3. Item number BK3026 INA
4. Also known as 0001771990000

5. EAN 4047643175838
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.067

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 54000
2. Radial Dynamic Load Rating Cr (N) 28000
3. Limiting speed (n G) 8600
4. Limiting speed for grease lubrication (n G Grease) 5200
5. Reference speed (n ϑr) 6200
6. ECLASS number 23-05-09-06
7. ECLASS2 number 23-05-09-06
8. Medias description Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
