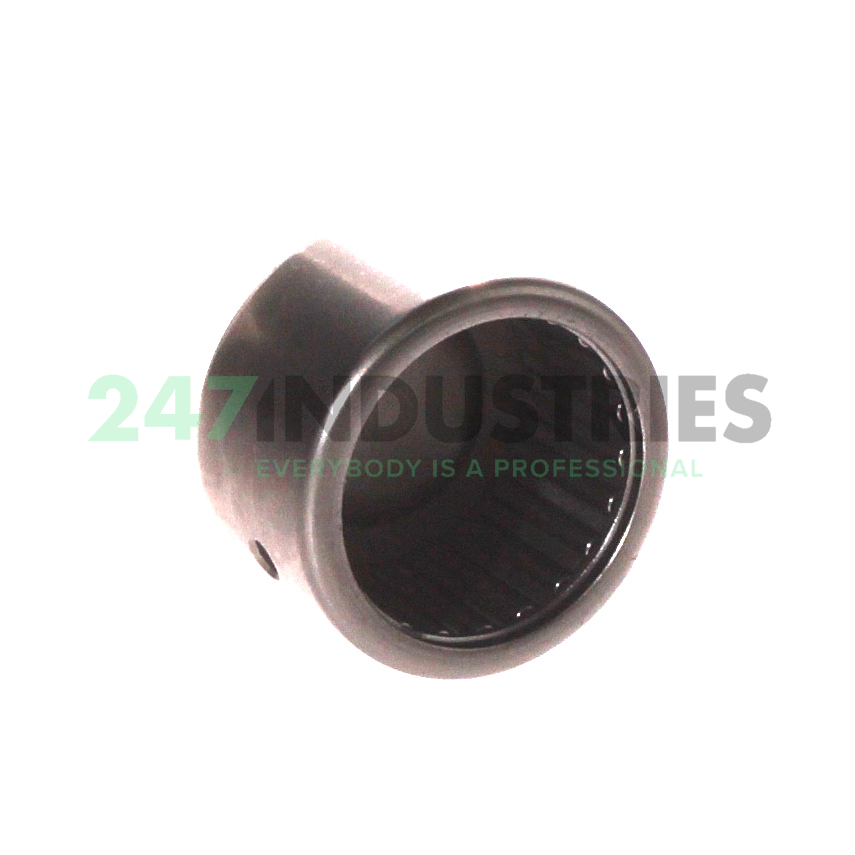

BK2016-AS1 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 26
3. Width (B) MM 16
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 20

Suffix description

1. AS1 Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number BK2016-AS1 INA
4. Also known as 0002269470000

5. EAN 4012802444667
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.024

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 20100
2. Limiting speed (n G) 12700
3. Limiting speed for grease lubrication (n G Grease) 7600
4. Reference speed (n ϑr) 9300
5. ECLASS number 23-05-09-06
6. ECLASS2 number 23-05-09-06
