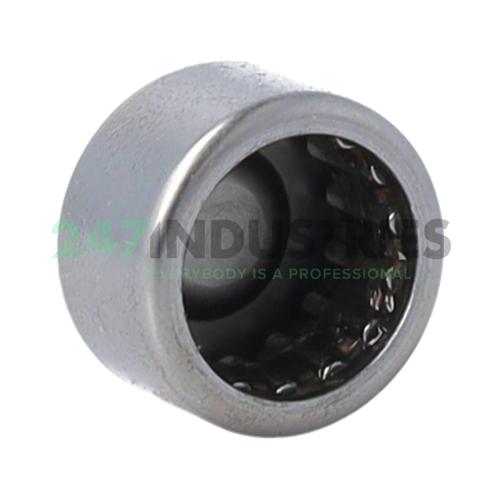

BK1512-L271 INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 21
3. Width (B) MM 12
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 0.8268
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 15

Suffix description

1. L271 Shell Retinax LX2 Anti Wear Protection Grease (Temperature Range -20°C ~ 140°C)

Technical details

1. Availability 500 pcs
2. Brand INA
3. Item number BK1512-L271 INA
4. Also known as 0005349940968

5. EAN 4054364526818
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.015

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 9400
2. Limiting speed (n G) 16300
3. Limiting speed for grease lubrication (n G Grease) 9800
4. Reference speed (n ϑr) 12300
5. ECLASS number 23-05-09-06
6. ECLASS2 number 23-05-09-06
