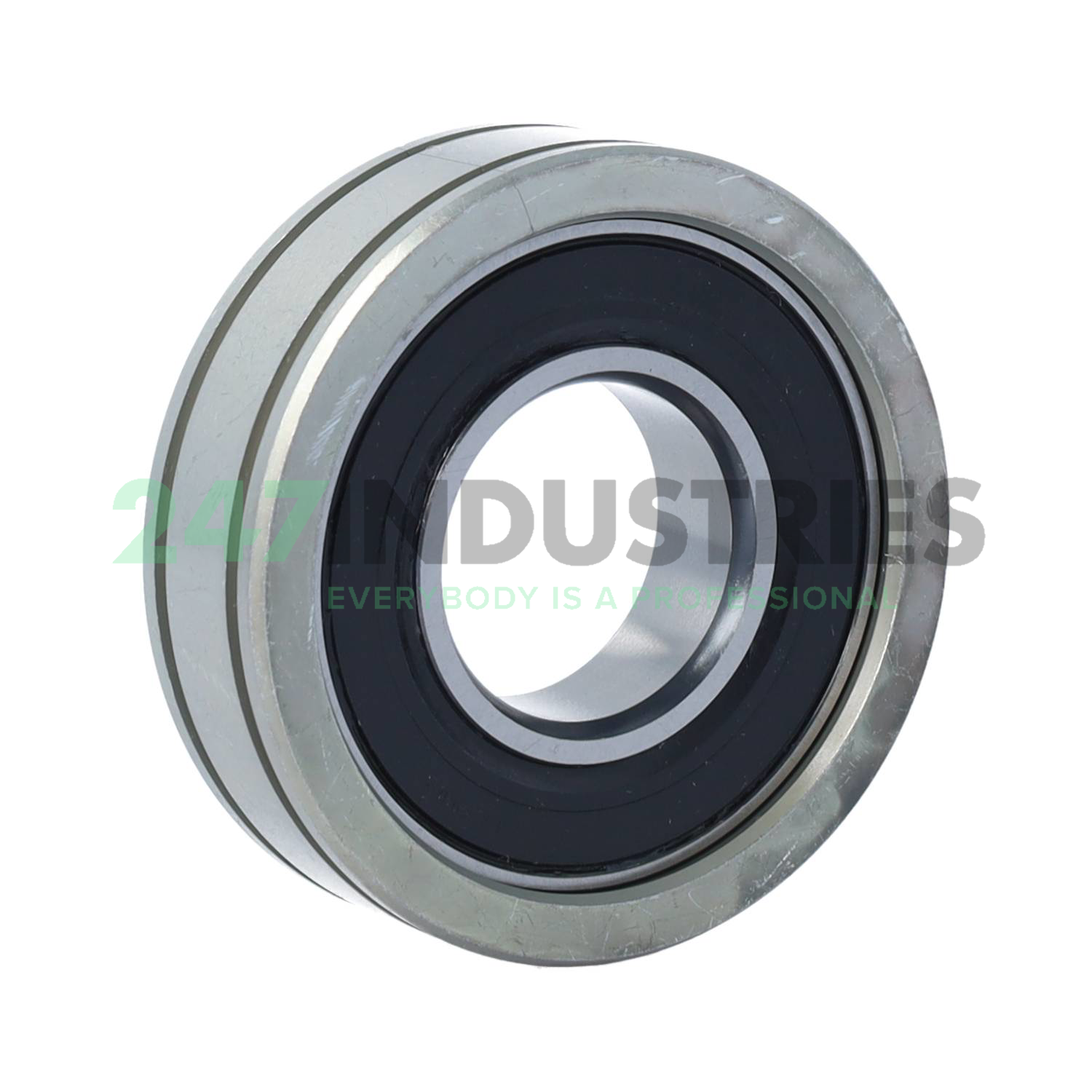

BE30-XL INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 21
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.8268

Suffix description

1. XL X-Life

Technical details

1. Availability 24 pcs
2. Brand INA
3. Item number BE30-XL INA
4. Also known as 0009494180000
   BE30

5. EAN 4012802801859
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.37

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Radial insert ball bearings BE, cylindrical outer ring, with steel aligning ring, P seals on both sides
