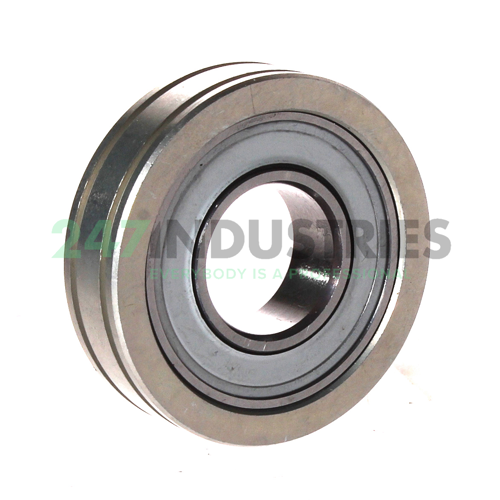

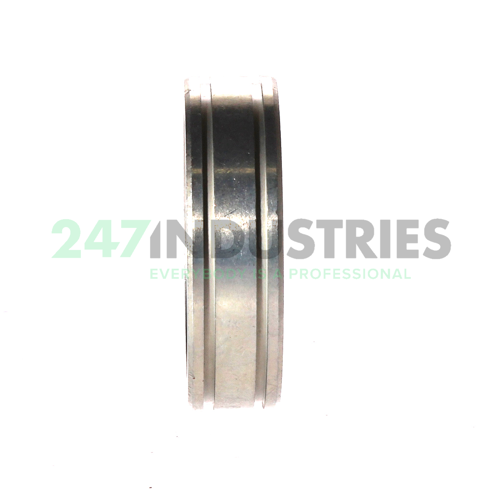

BE25-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693

Suffix description

1. XL X-Life

Technical details

1. Availability 339 pcs
2. Brand INA
3. Item number BE25-XL INA
4. Also known as 0009494260000
   205NPPB + E05

5. EAN 4012802824308
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.25

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7800
2. Radial Dynamic Load Rating Cr (N) 14900
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Radial insert ball bearings BE, cylindrical outer ring, with steel aligning ring, P seals on both sides
