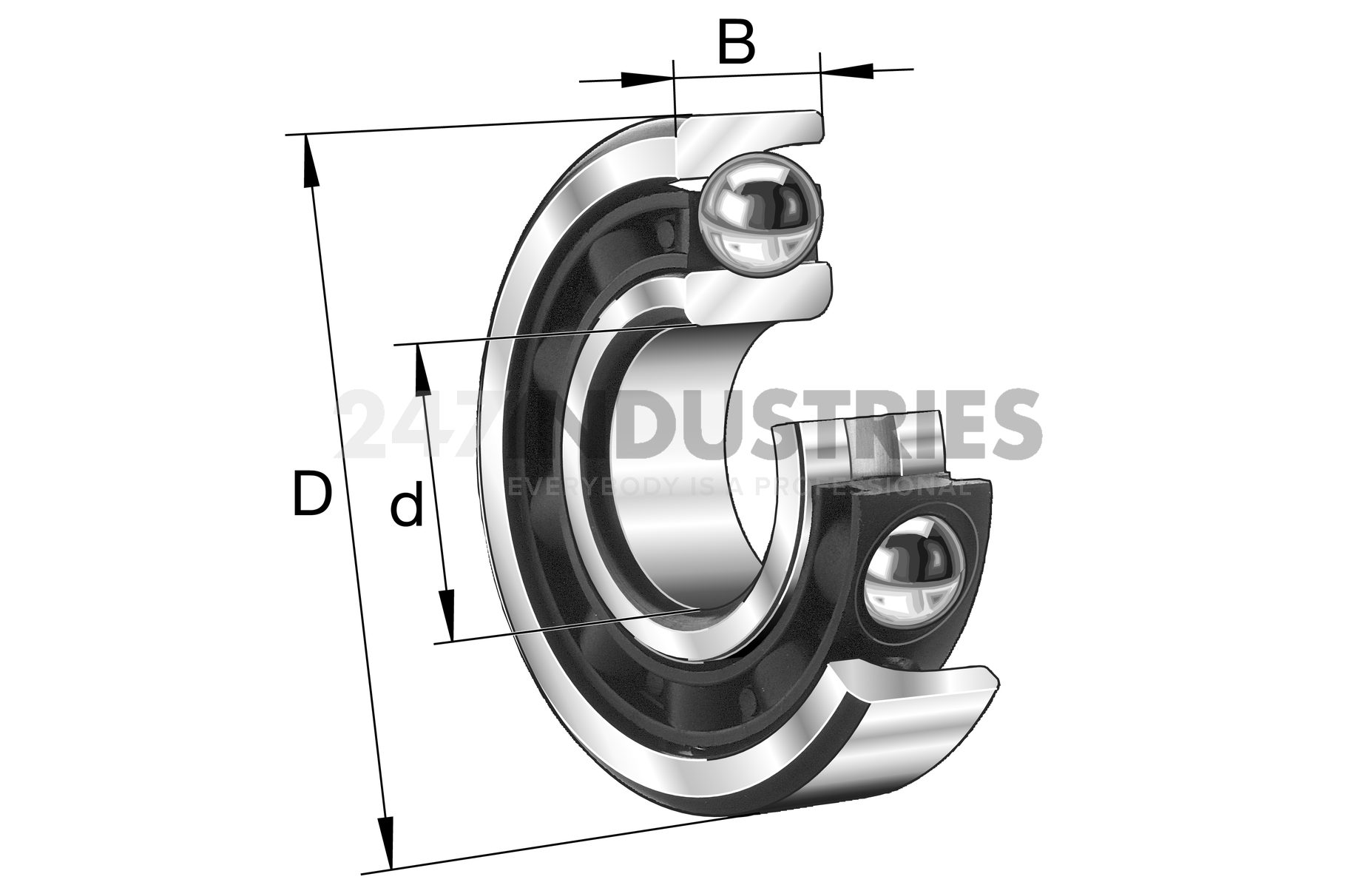

B spindle bearing with large steel balls
| Stock |
|
| Brand | FAG |
| Article number | B7209-C-T-P4S FAG |
| Inside diameter | 45mm |
| Outside diameter | 85mm |
| Width | 19mm |
The B7209-C-T-P4S FAG is a classic spindle bearing with standardized dimensions and large steel balls. This bearing type combines high load carrying capacity with high rigidity and is suitable for medium speed applications.
FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.
