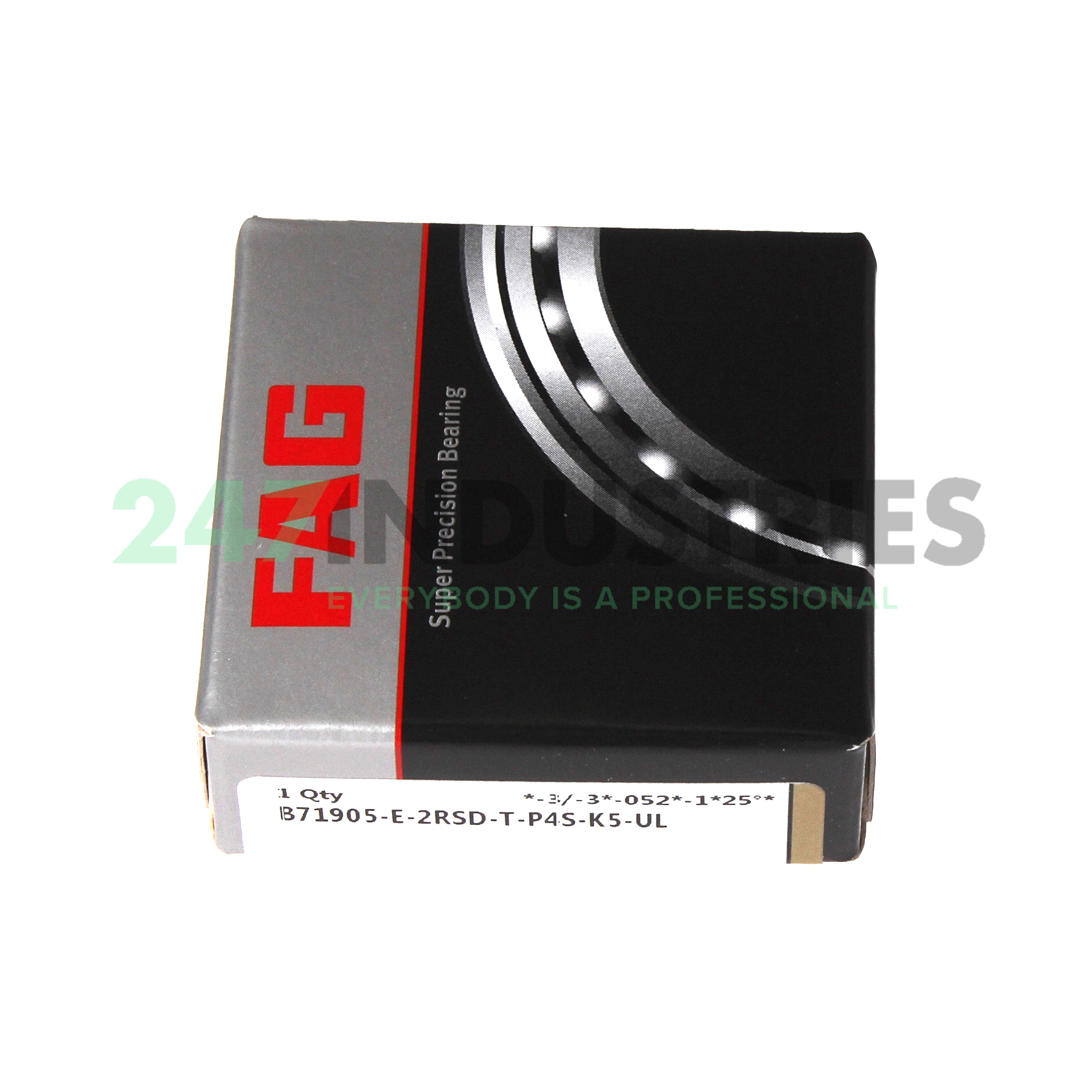

B71905-E-2RSD-T-P4S-K5-UL FAG

B spindle bearing with large steel balls

Stock
4 pcs in stock and ready for shipment
Brand FAG
Article number B71905-E-2RSD-T-P4S-K5-UL FAG
Inside diameter 25,00mm
Outside diameter 42,00mm
Width 9,00mm
Product description

The B71905-E-2RSD-T-P4S-K5-UL FAG is a classic spindle bearing with standardized dimensions and large steel balls. This bearing type combines high load carrying capacity with high rigidity and is suitable for medium speed applications.

FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.

In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.

Read more Show less
Help with this product

Similar to: B71905-E-2RSD-T-P4S-K5-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25,00
  2. Outer (D) MM 42,00
  3. Width (B) MM 9,00
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 1.6535
  6. Width (B) Inch 0.3543
  7. Width (b) mm 9,00

Suffix description

  1. E 25° Contact Angle
  2. 2RSD Lip Seals On Both Sides, Non-Contact
  3. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
  4. P4S.K5 Combination Of P4S (Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9) And K5 (Same as P4S But With Mean Sorting Of Bore And Outside Diameter)
  5. UL Single Bearing, Universal, Light Preload
  6. L055 Lubrication

Technical details

  1. Availability 4 pcs
  2. Brand FAG
  3. Item number B71905-E-2RSD-T-P4S-K5-UL FAG
  4. Also known as 0614969950000
  5. EAN 4012802349726
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.04

Product Properties

  1. Seal 2RU - Two Seals / Non Contact Type
  2. Cage Type TB - Hard Fiber Cage
  3. Precision K5 - P4S + K5
  4. Contact Angle 25 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) "3600.0000"
  2. Limiting speed for grease lubrication (n G Grease) "32000.0000"
