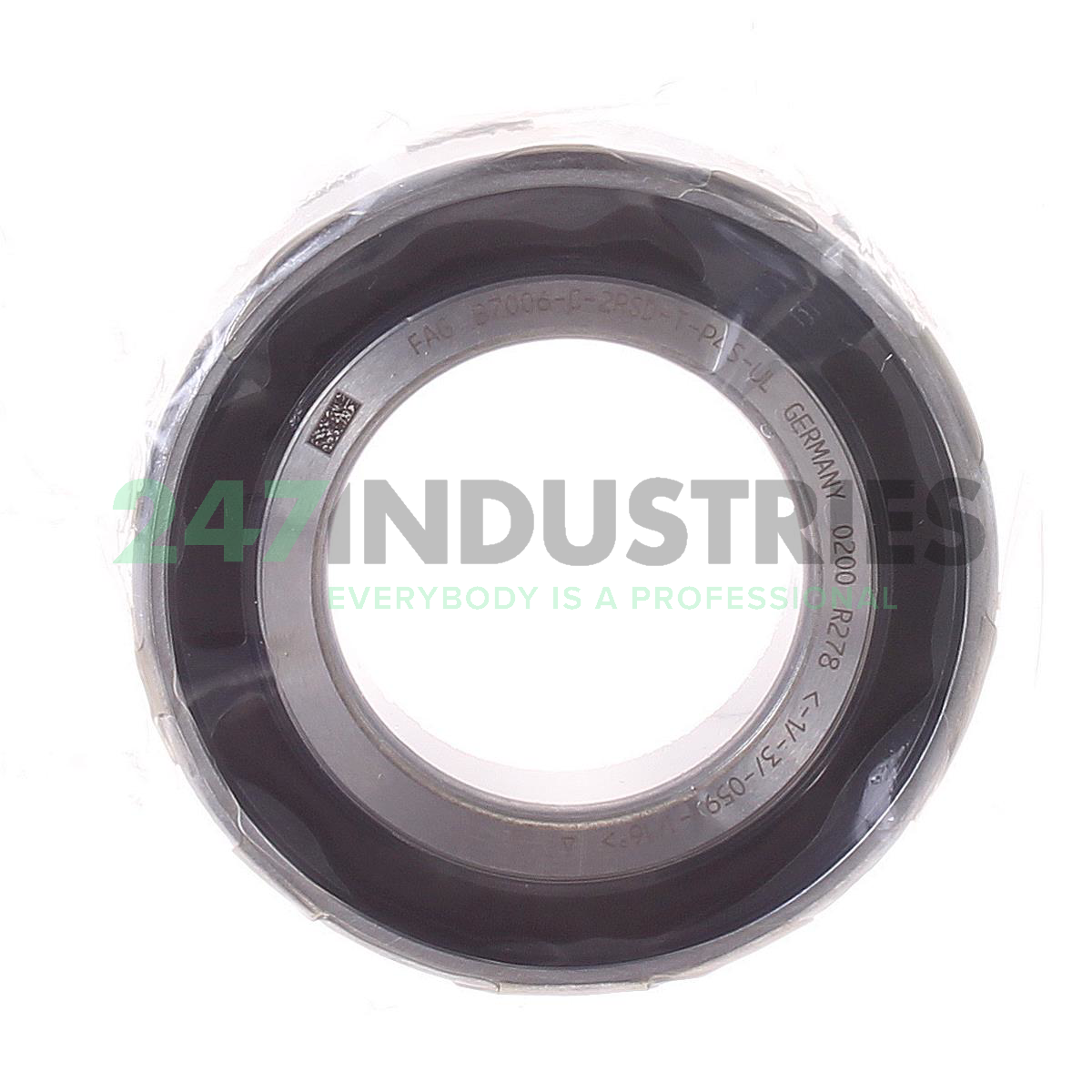

B7006C.2RSD.T.P4S.UL SLF Fraureuth

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 13
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.5118

Suffix description

1. C 15° Contact Angle
2. 2RSD Lip Seals On Both Sides, Non-Contact
3. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
4. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
5. UL Single Bearing, Universal, Light Preload

Technical details

1. Availability 1 pc
2. Brand SLF Fraureuth
3. Item number B7006C.2RSD.T.P4S.UL SLF Fraureuth
4. Also known as 106HC
   7006CDGA/P4A

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.12

Product Properties

1. Seal 2RU - Two Seals / Non Contact Type
2. Cage Type TB - Hard Fiber Cage
3. Precision P4S Precision (Higher than P4)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
7. Lubrication Standard Lubrication
