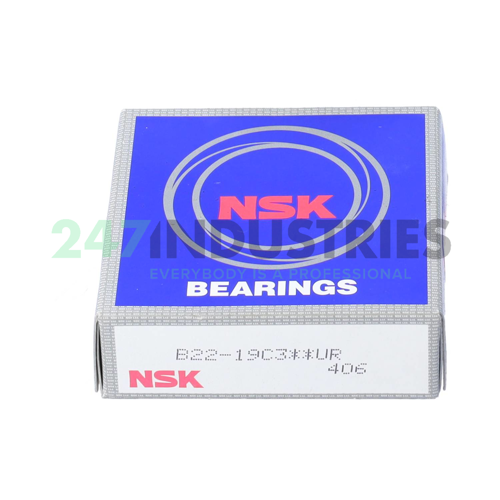

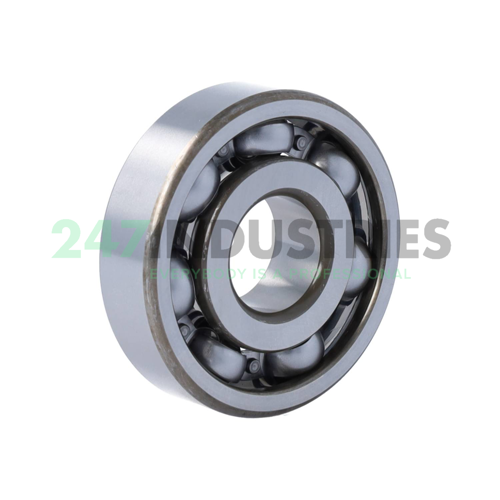

B22-19C3 UR NSK

All dimensions

1. Inner (d) MM 22
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693

Suffix description

1. C3 Internal Clearance Larger Than Normal,
2. UR NSK’s ‘UR’ Carbonitrided Heat Treatment Enhances Bearing Fatigue Life Under Contaminated Environments Such As Ones Commonly Found In Gearboxes

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number B22-19C3 UR NSK
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.238

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
